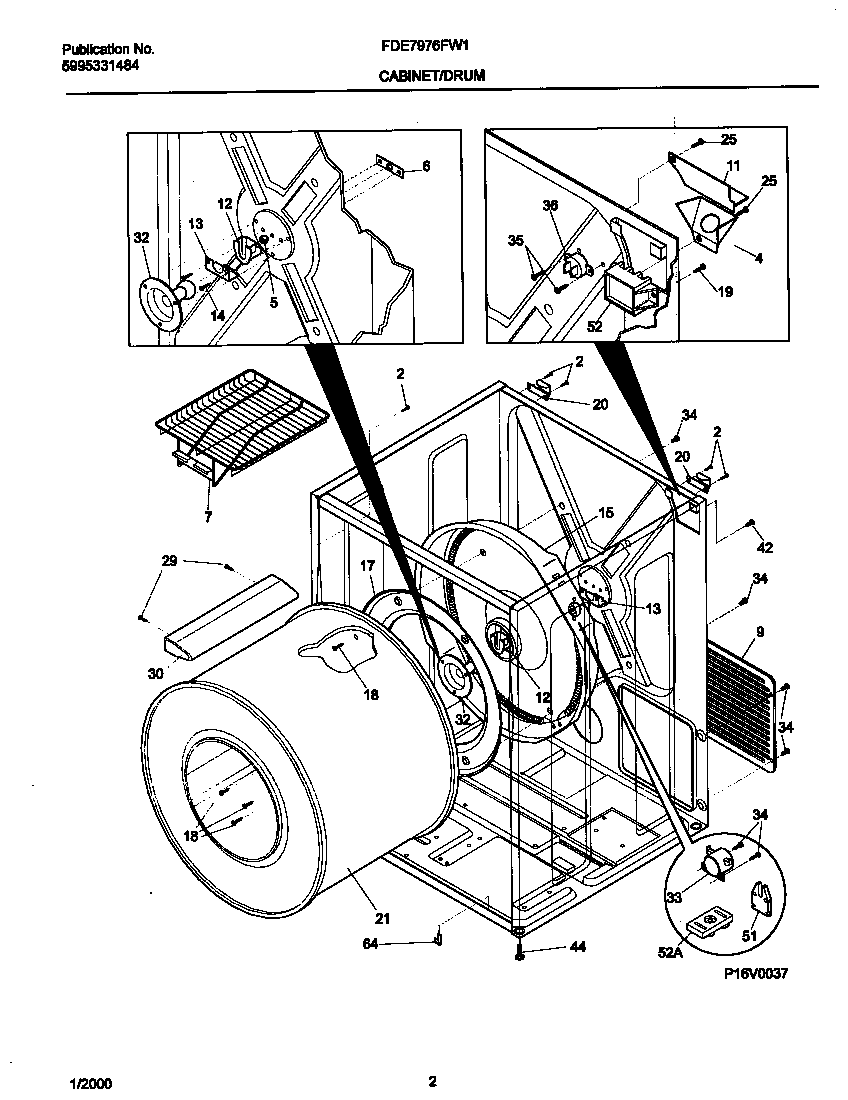

FDE7976FW1 02 – DRY CAB,HEATER

FDE7976FW1 02 – DRY CAB,HEATER

Written by

in

FDE7976FW1 02 – DRY CAB,HEATER

Products

PositionProduct
*50160WCI 5303281153]
*50161WCI 5303208586
*501625303307893 Frigidaire HI TEMP Rear Bearing Lubricant Kit
4WCI 131785200
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
7WCI 131805600
9WCI 131793201
11WCI 5303211428
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER HSG ASSY 5/16" (DW1)
173204254 Frigidaire Baffle Assembly
18131168200 Frigidaire Dryer Screw
19131205300 Frigidaire Screw
20WCI 131469100
21134138200 Frigidaire Drum Kit
255303015671 Frigidaire Bracket Termination Screw
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
34131243700 Frigidaire Screw
35131892100 Frigidaire Screw
36134120900 Frigidaire Dryer Limiter Thermal
42134154100 Frigidaire Screw 10-32 x 0.375 Co
44LEG-LEVELING
51131472100 Frigidaire Dryer Insulator Heater Coil
523202786 Frigidaire Terminal Block
52134101400 Frigidaire Dryer Kit Terminal Block
64CLIP
