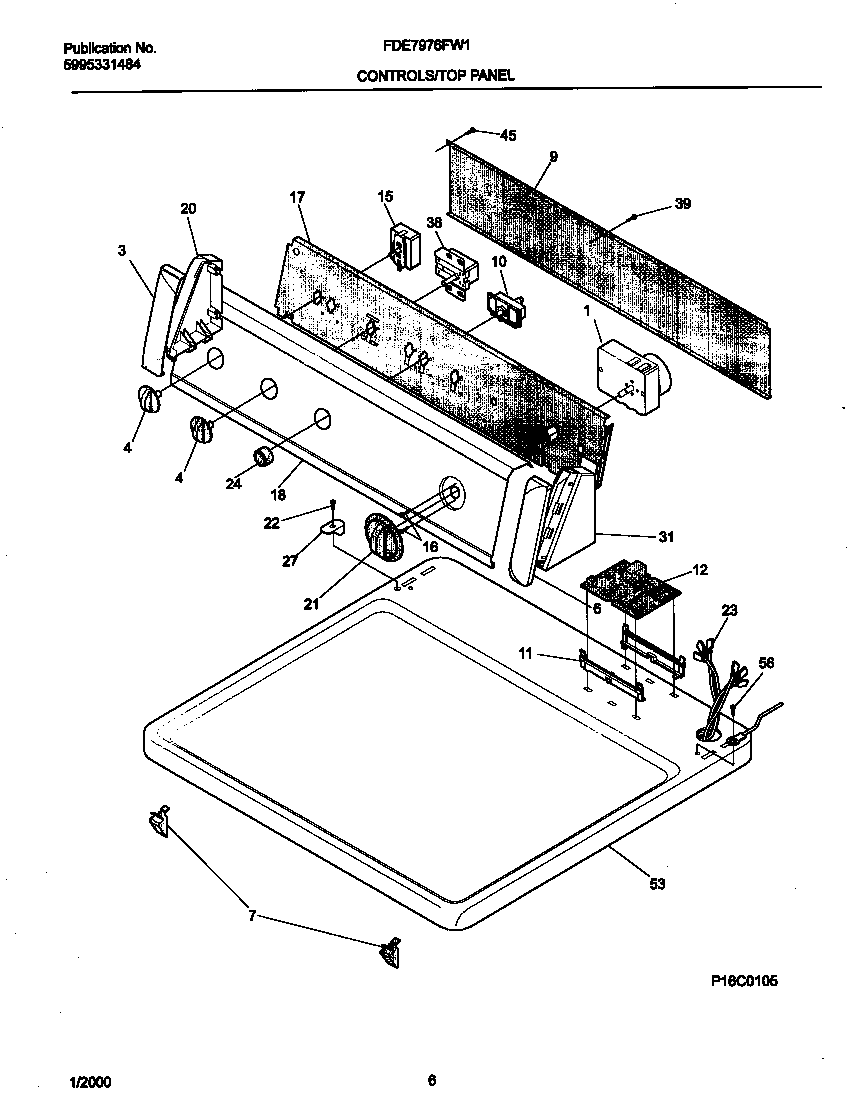

FDE7976FW1 04 – CONTROL PANEL

FDE7976FW1 04 – CONTROL PANEL

Written by

in

FDE7976FW1 04 – CONTROL PANEL

Products

PositionProduct
1WCI 131579800
3WCI 131122610
4131858004 Frigidaire Control Knob, White
6WCI 131122600
73205821 Frigidaire Clip
9BACKSHEET
10131469000 Frigidaire Switch-Push/Start P1
11BRACKET-CONTROL BOARD
12CONTROL BOARD,MOISTURE SENSOR
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 131695300
20WCI 131122710
21134011703 Frigidaire Dryer Timer Knob
22WCI 131266300
23WCI 131872300
24KNOB-START SWITCH, BLACK
27CLIP-CONSOLE MTG
31WCI 131122700
38WCI 131048300
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
