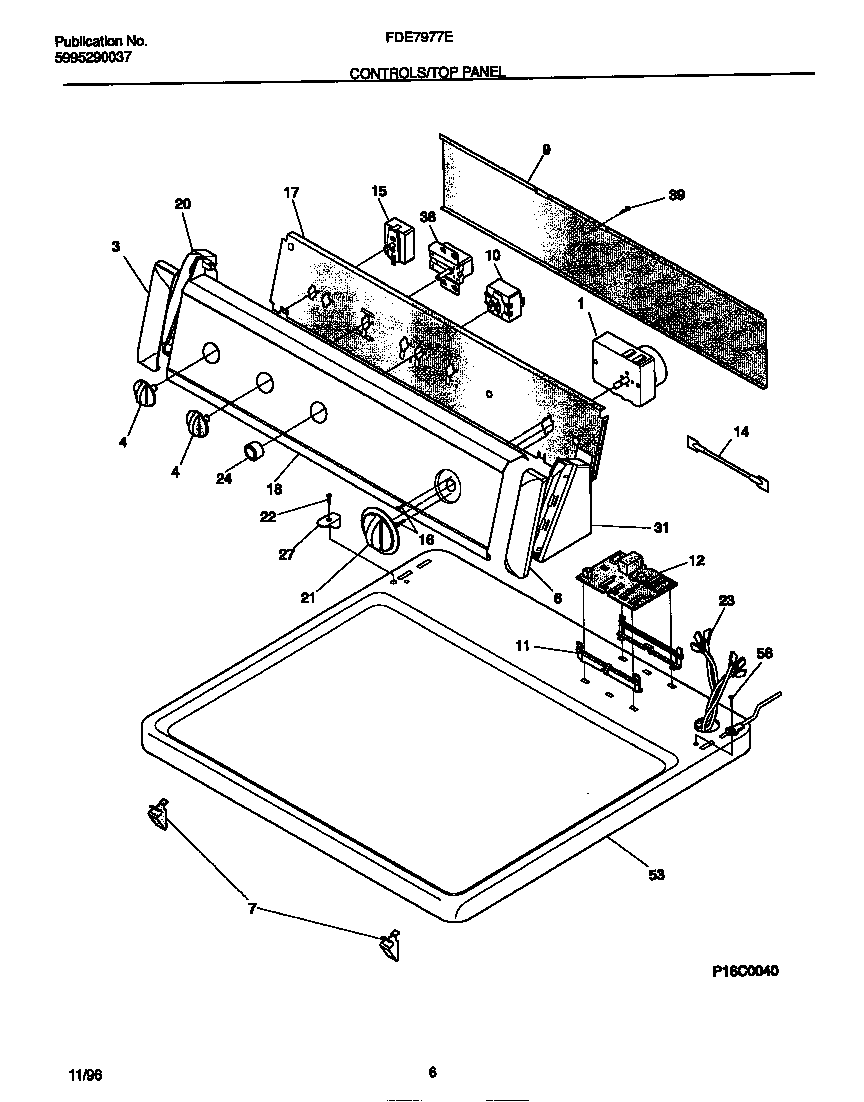

FDE7977ES0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*31842	WCI 131629100
*31843	HARNESS, BUZZER (NON-ILLUSTRATED)
*31844	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	131469000 Frigidaire Switch-Push/Start P1
11	WCI 131089800
12	WCI 131489900
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131615600
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131484900
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 131048300
39	131205100 Frigidaire Screw
53	WCI 131391618
56	131243800 Frigidaire Screw
