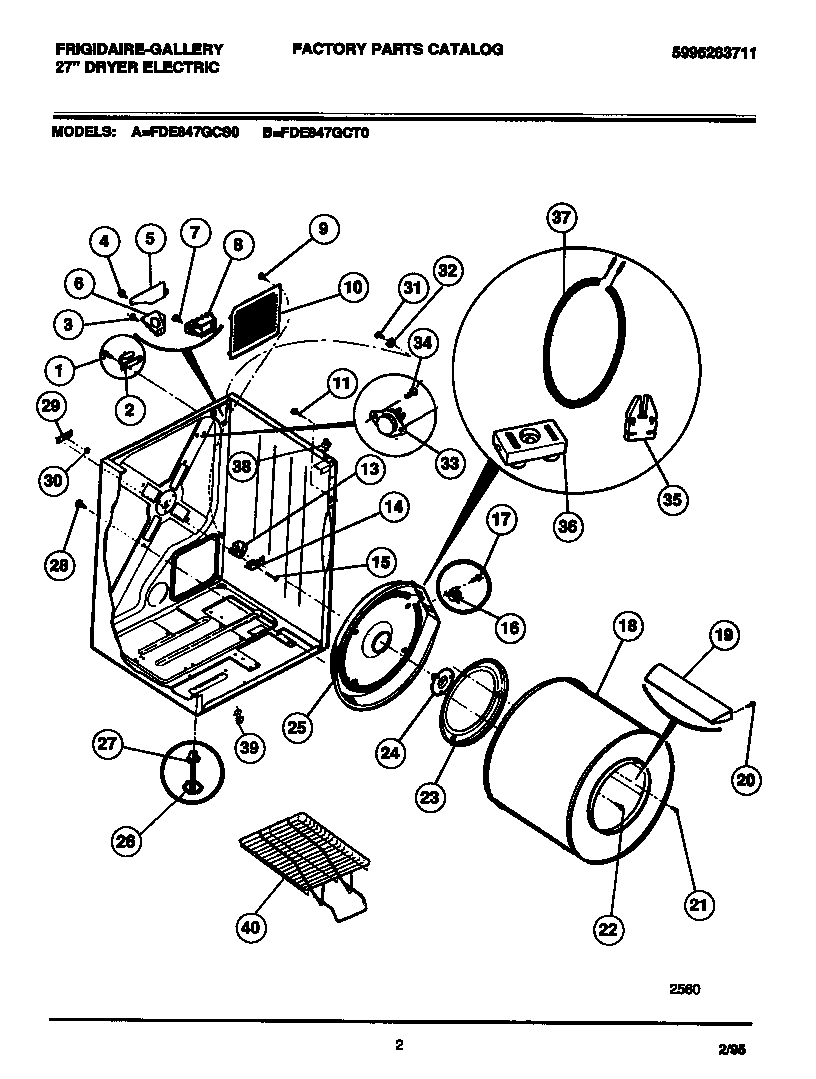

FDE847GCS0 02 – CABINET, DRUM, HEATER ASSEMBLY

Products

Position	Product
*04880	WCI 5303281153]
1	WCI 311168200
2	BRACKET-HINGE
4	5303015671 Frigidaire Bracket Termination Screw
5	WCI 5303211428
6	WCI 3281040
7	131205300 Frigidaire Screw
8	134101400 Frigidaire Dryer Kit Terminal Block
10	PLATE-COVER
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	WCI 5303281113
18	WCI 3201199
19	137552900 Frigidaire Vane
20	WCI 131205200
22	131168200 Frigidaire Dryer Screw
23	3204254 Frigidaire Baffle Assembly
24	131777700 Frigidaire Dryer Bearing Drum
25	HEATER ASSY W/HSNG
26	BOLT-FOOT (4)
27	WCI 3201202
28	131243700 Frigidaire Screw
29	5303281020 Frigidaire Ball Clip
30	5303281019 Frigidaire Ball Assembly
31	134154100 Frigidaire Screw 10-32 x 0.375 Co
33	134120900 Frigidaire Dryer Limiter Thermal
34	WCI 08010804
35	131472100 Frigidaire Dryer Insulator Heater Coil
36	3202786 Frigidaire Terminal Block
37	LARGE DIA COIL 5/16" TERM
38	WCI 131346400
39	WCI 131353500
40	DRYING RACK-OPTIONAL
