FDE847GCT0 04 – CONSOLE, CONTROLS, TOP PANEL

FDE847GCT0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

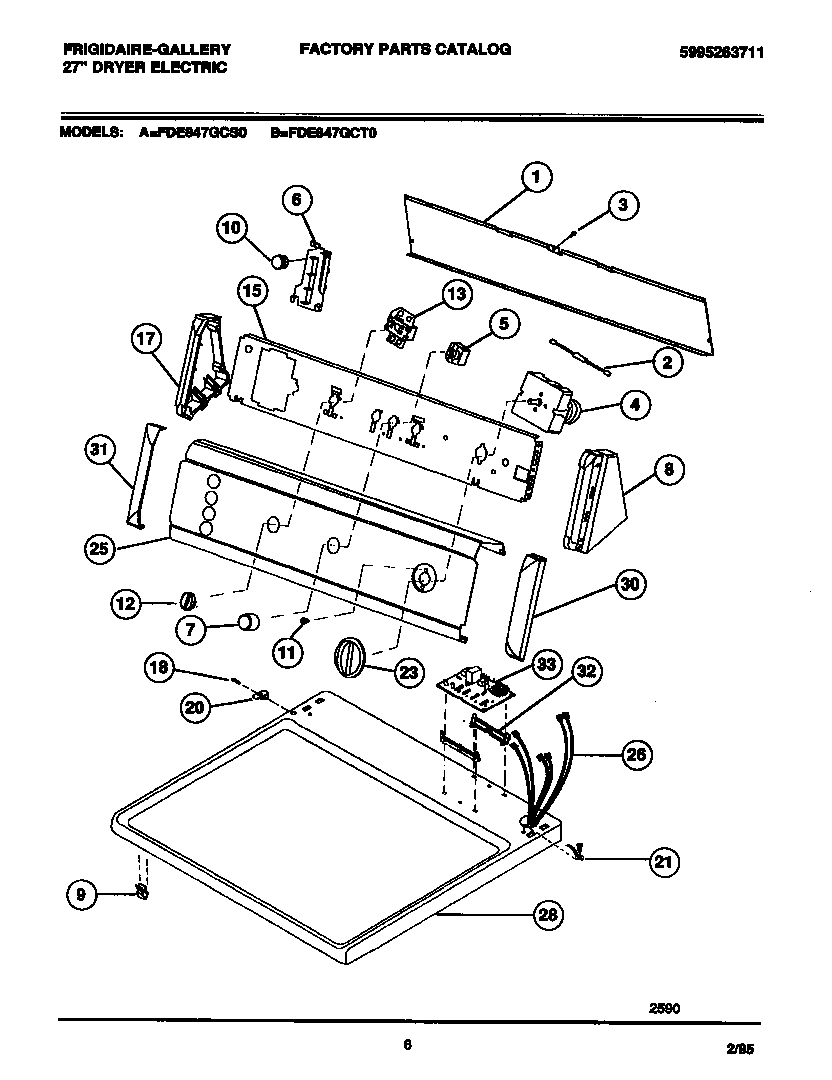

FDE847GCT0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
*04881HARNESS, BUZZER (NON-ILLUSTRATED)
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4WCI 131062600
5WCI 131048000
6WCI 131048200
7WCI 131141505
8WCI 131122702
93205821 Frigidaire Clip
10WCI 131141202
11218359202 Frigidaire Refrigerator Screw
12WCI 131141106
13WCI 131048300
15WCI 131297302
17WCI 131122712
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131141004
25WCI 131380600
26WCI 131236300
28WCI 131130304
30WCI 131122602
31WCI 131122612
32WCI 131089800
33WCI 131072000
