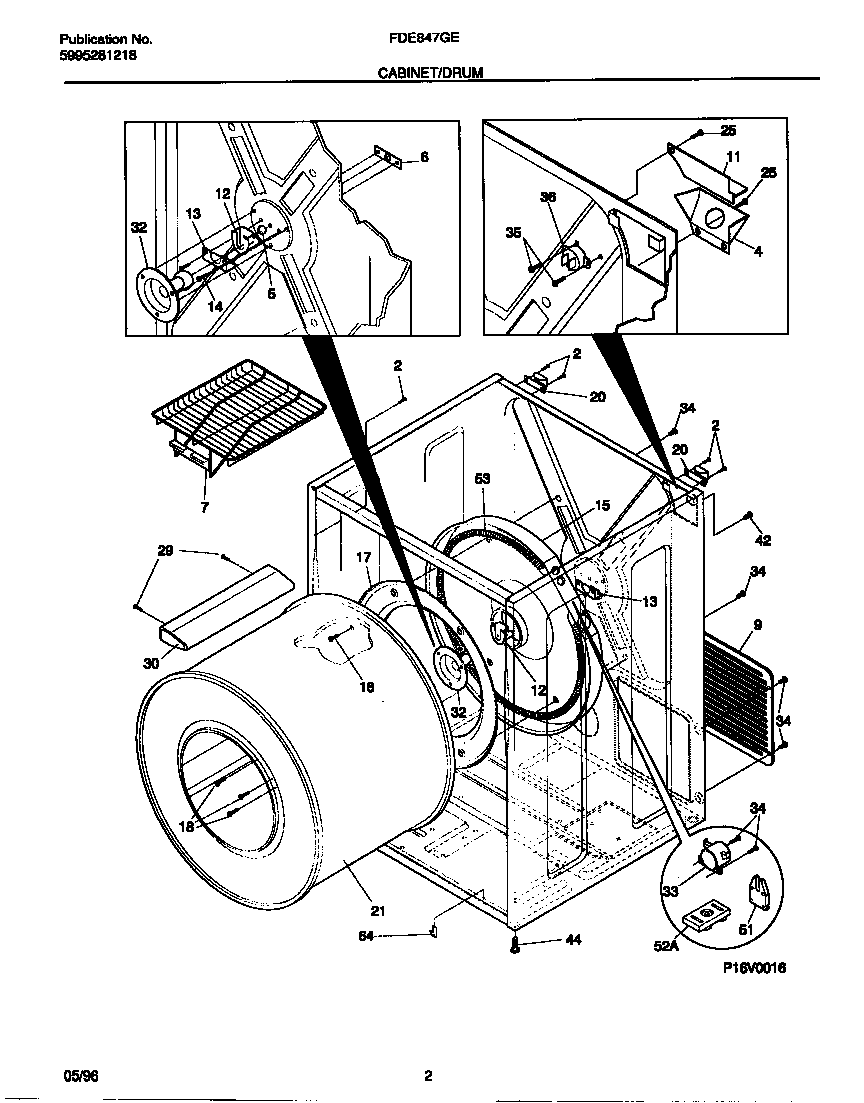

FDE847GES0 02 – CABINET/DRUM

Products

Position	Product
*20040	WCI 5303281153]
4	WCI 3281040
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
7	WCI 131557600
9	PLATE-COVER
11	WCI 5303211428
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15B	HEATER HSG ASSY 5/16" (DW1)
17	3204254 Frigidaire Baffle Assembly
18	131168200 Frigidaire Dryer Screw
20	WCI 131469100
21	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
25	5303015671 Frigidaire Bracket Termination Screw
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
32	131777700 Frigidaire Dryer Bearing Drum
33	WCI 5303281113
34	131243700 Frigidaire Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
44	LEG-LEVELING
51	131472100 Frigidaire Dryer Insulator Heater Coil
52	3202786 Frigidaire Terminal Block
53	LARG DIA COIL 1/4" TERM
64	WCI 131353500
