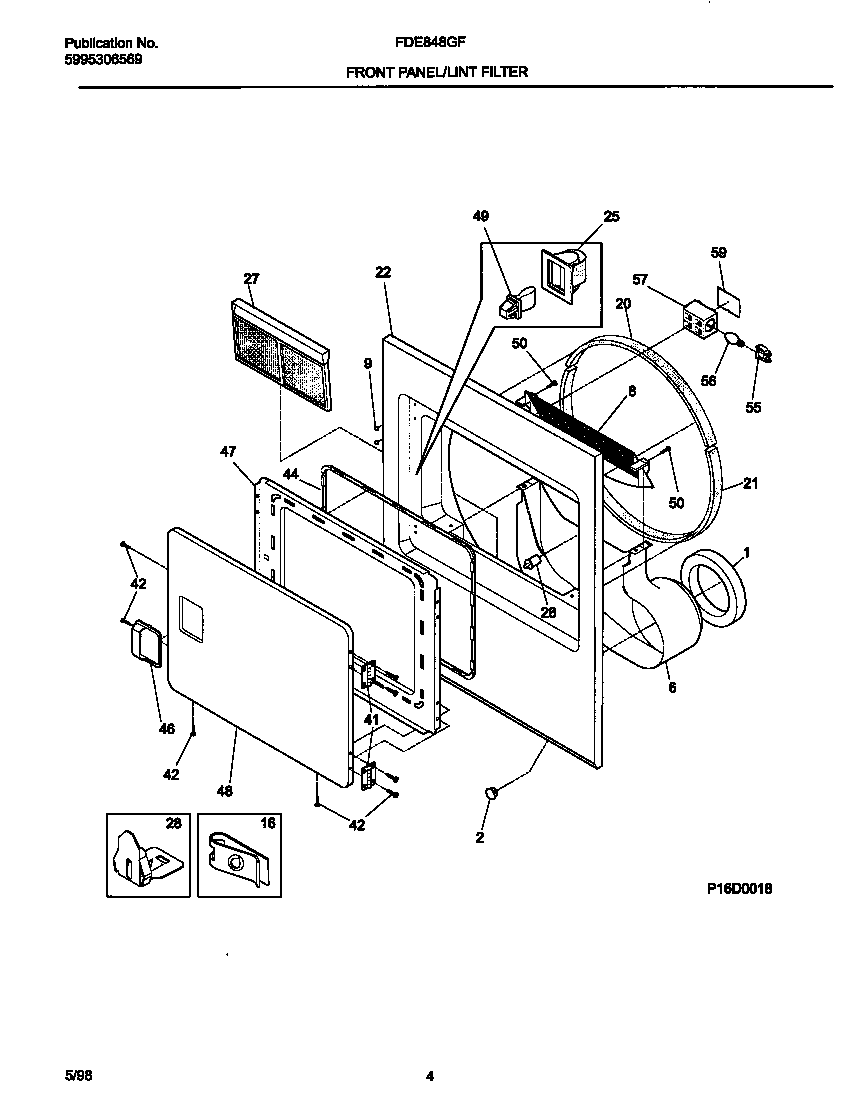

FDE848GFT0 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
*61004	5308027429 Frigidaire Dryer High Temperature Adhesive
*61003	WCI 131657500
1	134417000 Frigidaire Seal
2	131397000 Frigidaire Plug
6	WCI 131621900
9	131633200 Frigidaire Plug
16	WCI 131063700
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131635743
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	131450300 Frigidaire Dryer Lint Screen Filter
28	CLIP GUIDE (4)
34	131243700 Frigidaire Screw
41	134222900 Frigidaire Dryer Door Hinge
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	WCI 131484401
47	WCI 131574005
48	WCI 131574105
49	5303207102 Frigidaire Door Strike
55	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
