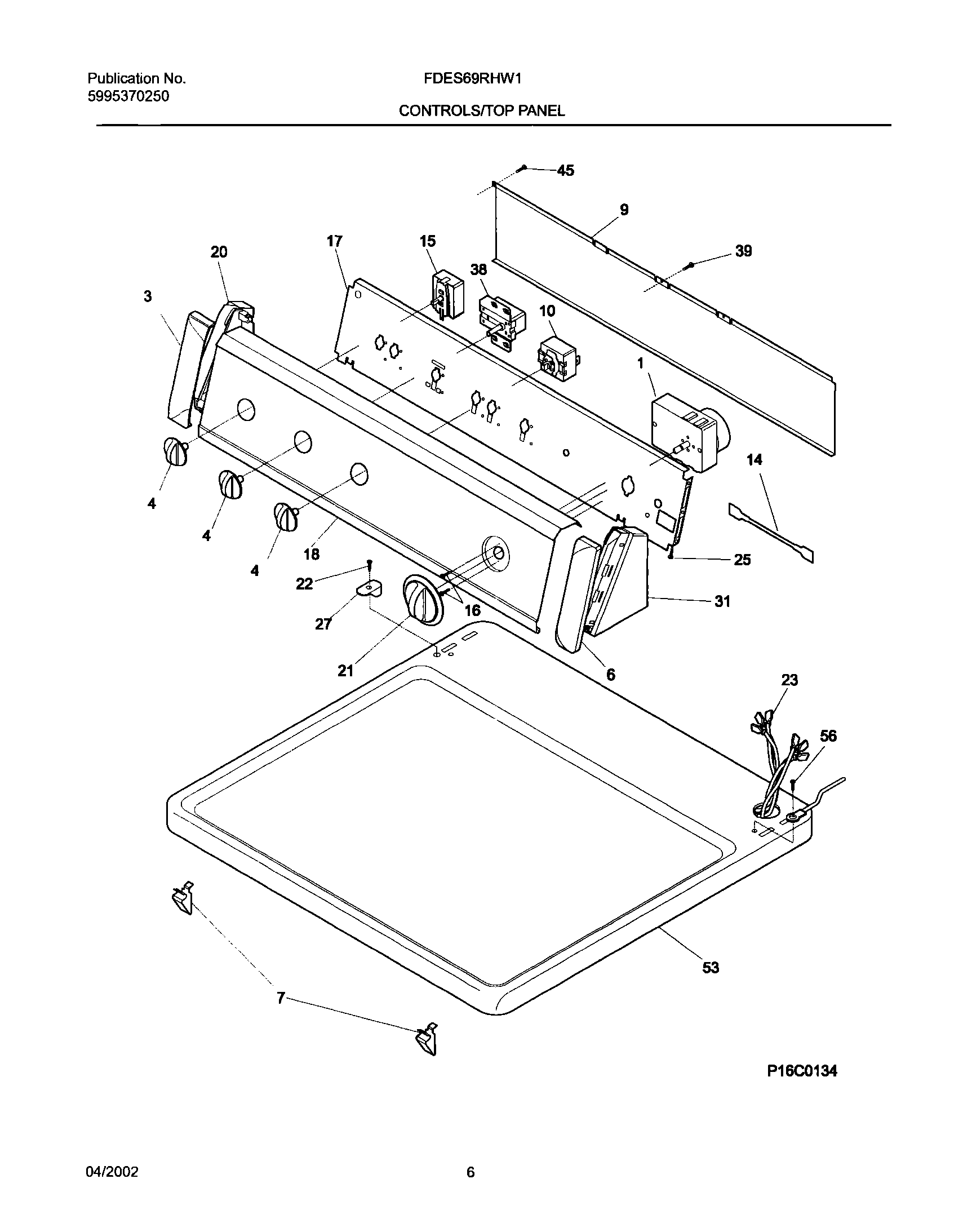

FDES69RHW1 07 – CONTROL PANEL

FDES69RHW1 07 – CONTROL PANEL

Written by

in

FDES69RHW1 07 – CONTROL PANEL

Products

PositionProduct
NIWCI 131663300
1131719100 Frigidaire Timer Assembly
3WCI 131122610
4131858004 Frigidaire Control Knob, White
6WCI 131122600
73205821 Frigidaire Clip
9WCI 134088700
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 131988100
20WCI 131122710
21134011703 Frigidaire Dryer Timer Knob
22WCI 131266300
23Wiring Harness
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 131122700
38WCI 131048300
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
