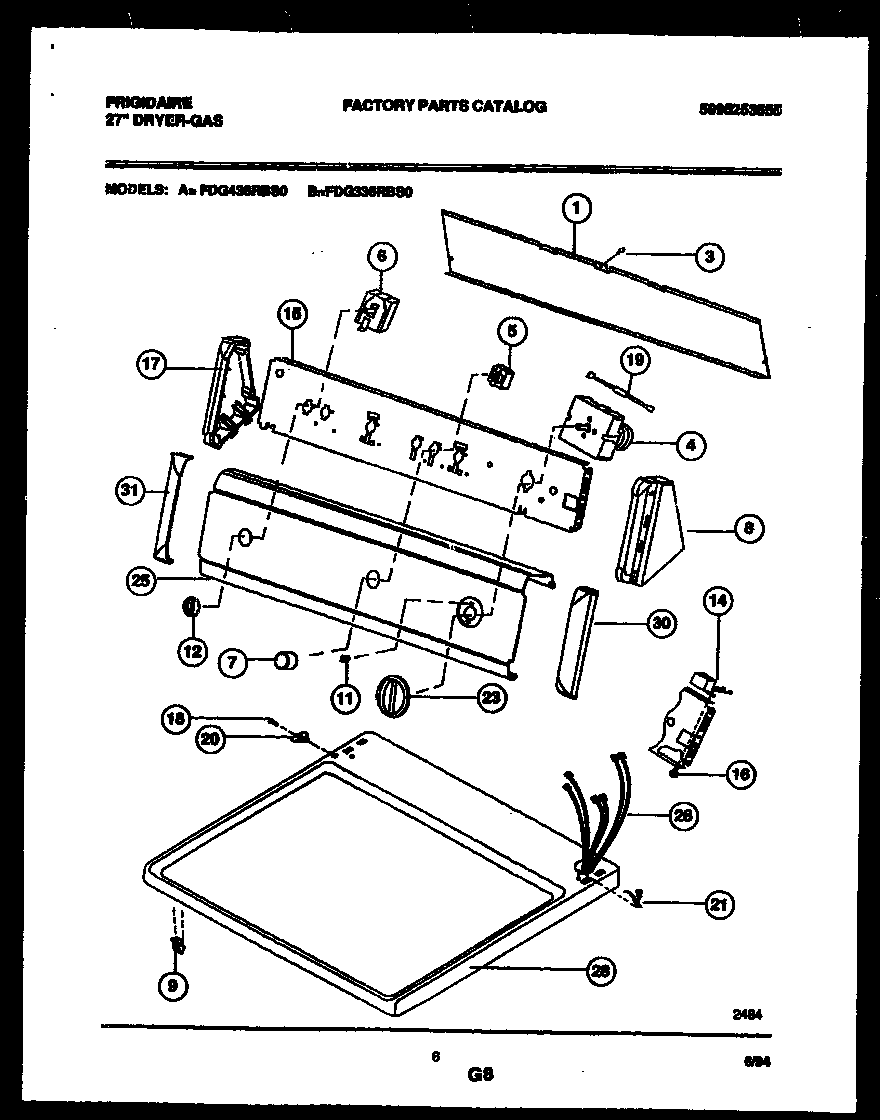

FDG336RBS0 04 – CONSOLE AND CONTROL PARTS

FDG336RBS0 04 – CONSOLE AND CONTROL PARTS

Written by

in

FDG336RBS0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1BACKSHEET
3131205100 Frigidaire Screw
4WCI 131062400
5WCI 131048000
7WCI 131141301
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12131858004 Frigidaire Control Knob, White
15WCI 131297306
17END CAP-L.H.-WHITE
18WCI 5303289526
19REGISTER
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131280400
25WCI 131280600
26WCI 131154000
28WCI 131130304
28PANEL-TOP-WHITE
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
