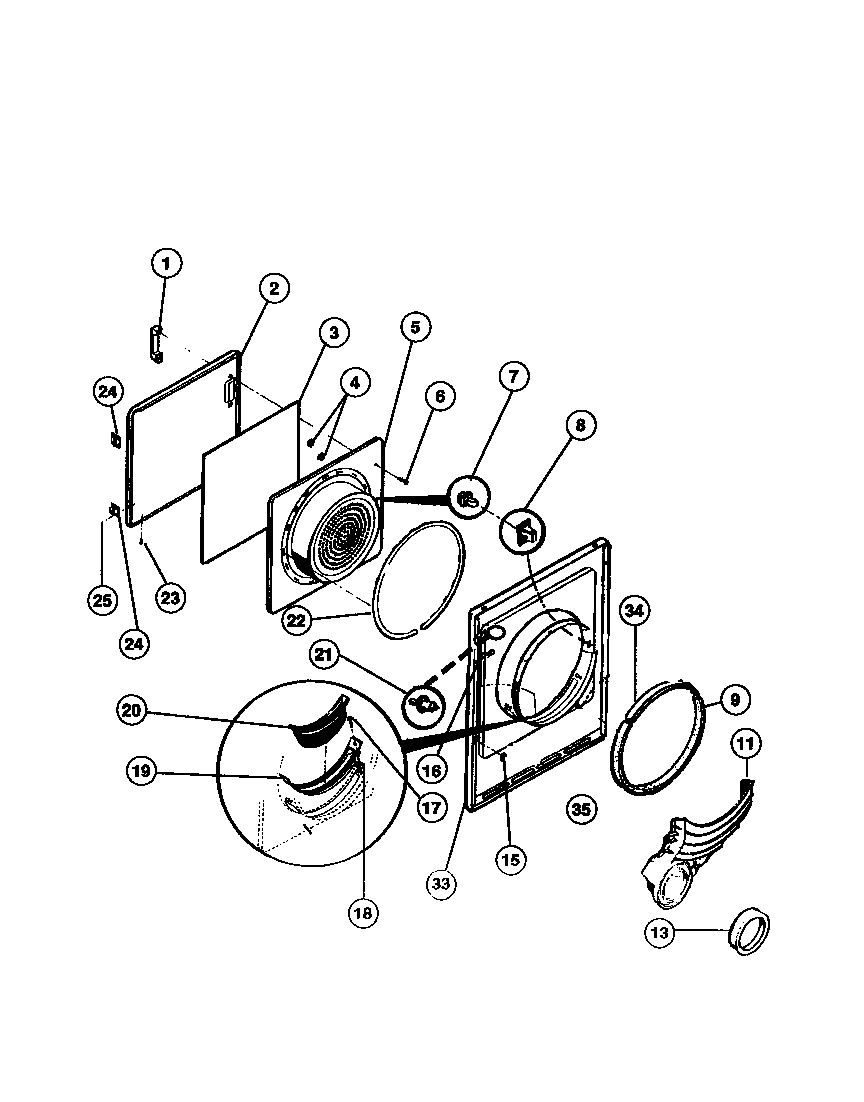

FDG436RBS1 03 – DOOR PANEL, LINT FILTER, FRONT PANE

FDG436RBS1 03 – DOOR PANEL, LINT FILTER, FRONT PANE

Written by

in

FDG436RBS1 03 – DOOR PANEL, LINT FILTER, FRONT PANE

Products

PositionProduct
1WCI 131192301
2PANEL-OUTER DOOR, WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
20TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
33FRONT PANEL-WHITE
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
35131397000 Frigidaire Plug
