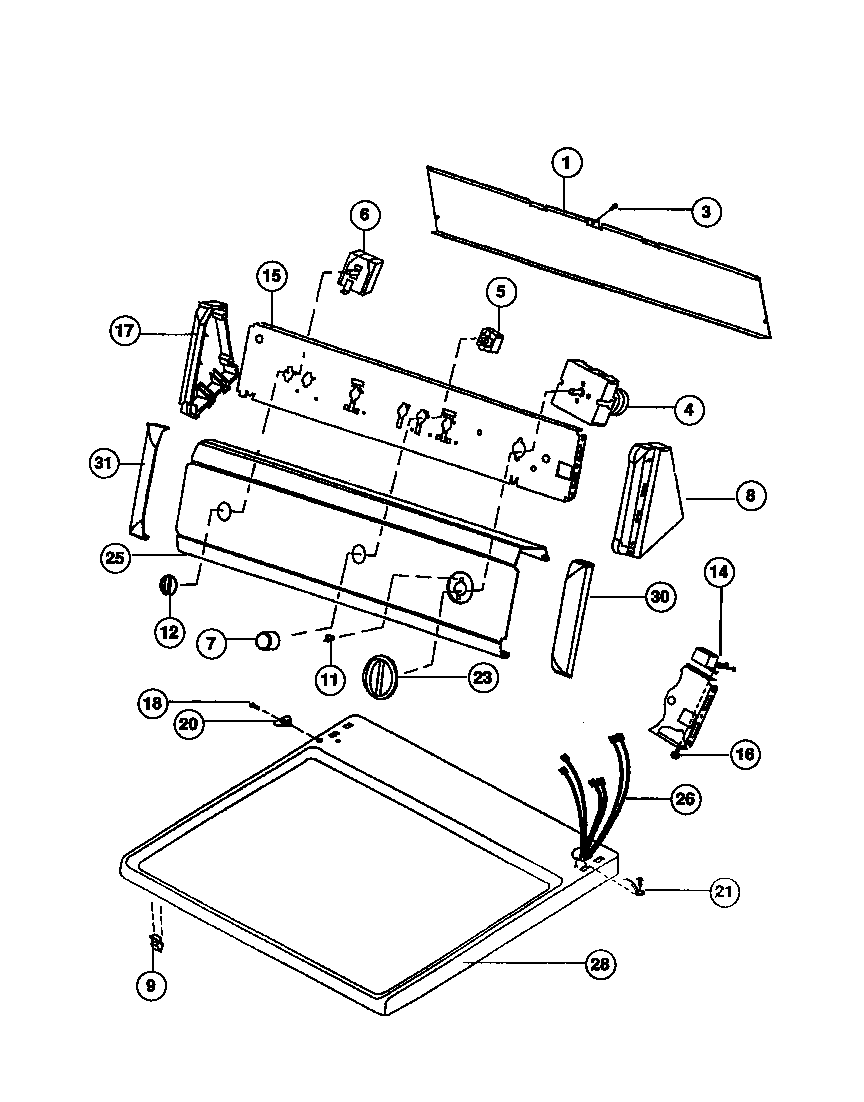

FDG436RBT1 04 – CONTROL PANEL, TOP PANEL

Products

Position	Product
1	BACKSHEET
3	131205100 Frigidaire Screw
4	TIMER
5	WCI 131048000
6	WCI 131288900
7	WCI 131141302
8	WCI 131122702
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131141102
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	END CAP-L.H.-WHITE
17	WCI 131122712
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	WCI 131141002
23	134011703 Frigidaire Dryer Timer Knob
25	WCI 131280700
26	WCI 131266500
28	WCI 131130404
30	WCI 131122602
31	WCI 131122612
