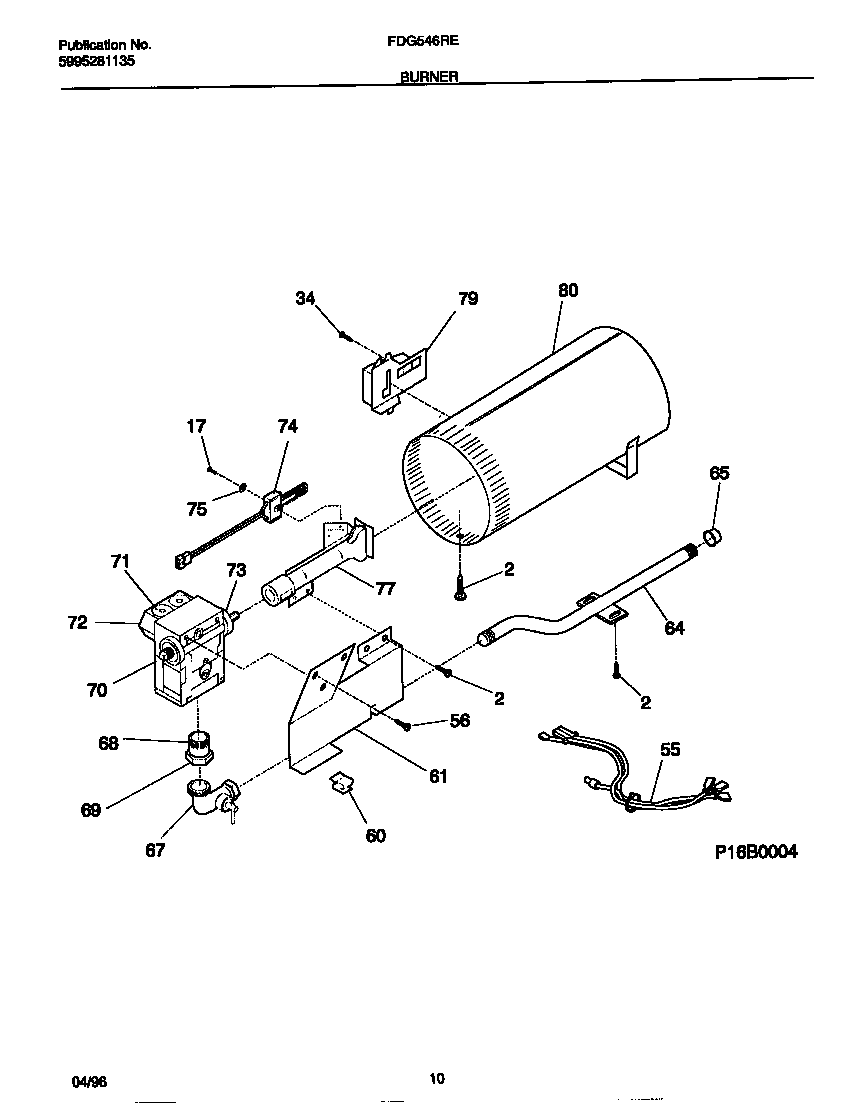

FDG546RES0 06 – BURNER

FDG546RES0 06 – BURNER

Written by

in

FDG546RES0 06 – BURNER

Products

PositionProduct
*15082LP GAS CONV KIT
2131168200 Frigidaire Dryer Screw
17131205300 Frigidaire Screw
34131243700 Frigidaire Screw
55HARNESS
56131243800 Frigidaire Screw
60CLIP
61WCI 131418701
64WCI 5303286873
6508015112 Frigidaire CAP
67WCI 131512000
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
77WCI 131553400
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80TUBE ASSY BURNER
