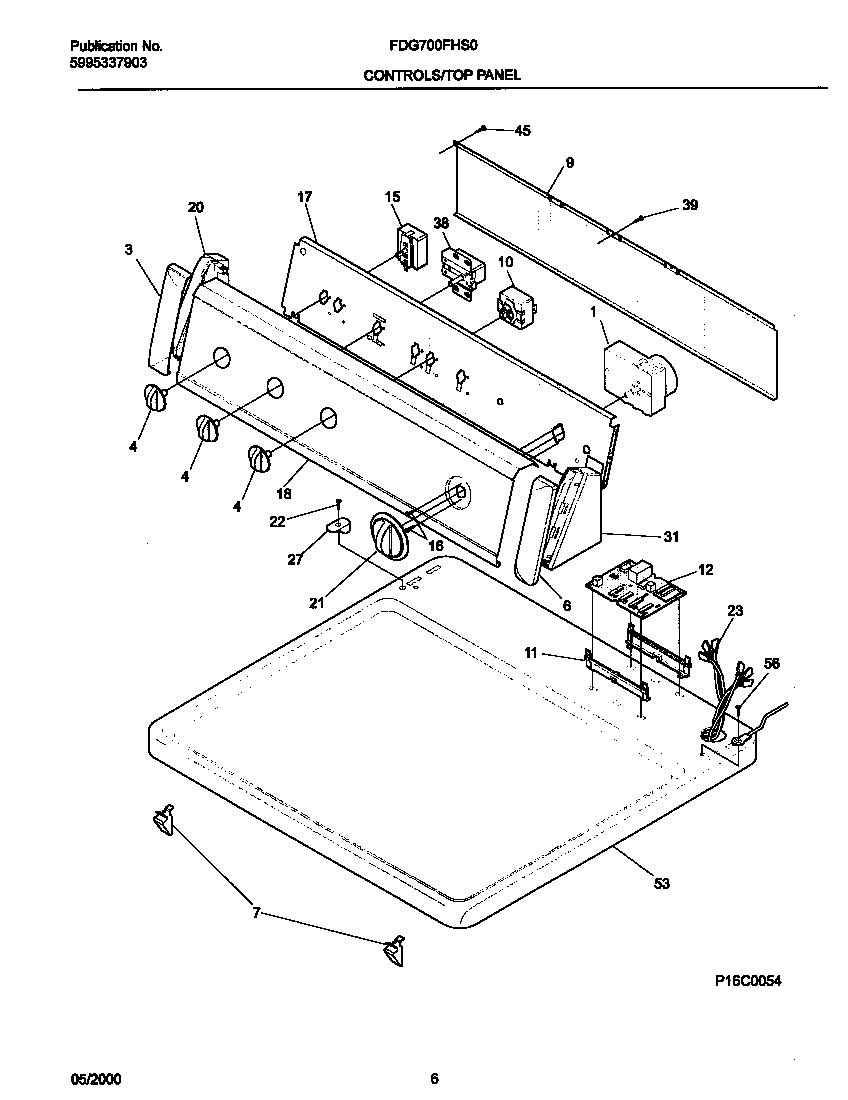

FDG700FHS0 04 – CONTROL PANEL

Written by

Products

Position	Product
*61085	WCI 131663300
1	WCI 131579900
3	COVER-CAP-LH-WHITE
4	WCI 131941600
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	WCI 131141730
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11	BRACKET-CONTROL BOARD
12	CONTROL BOARD,MOISTURE SENSOR
15	WCI 131641900
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131941500
20	END CAP-L.H.-WHITE
21	WCI 131941900
22	WCI 131266300
23	WCI 131872700
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 131048300
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
