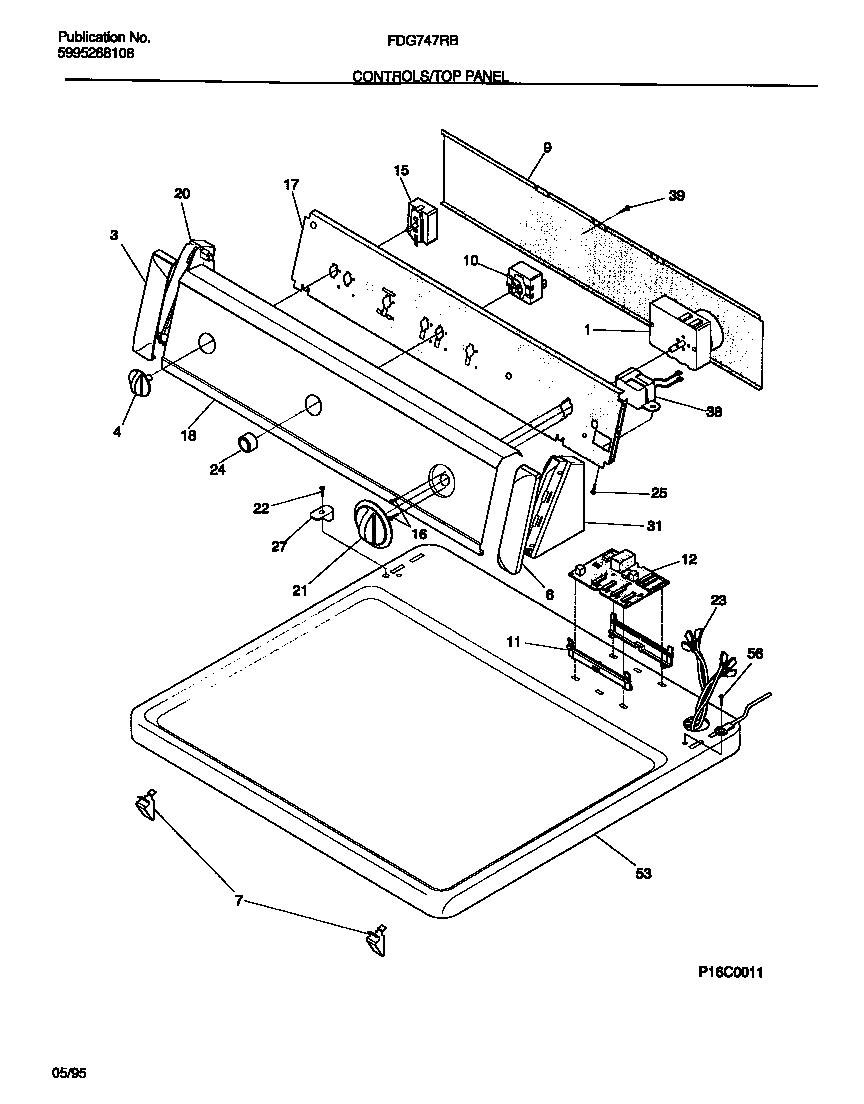

FDG747RBS1 04 – CONTROLS/TOP PANEL

Products

Position	Product
*05843	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 131111300
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	WCI 131048000
11	WCI 131089800
12	WCI 131167400
15	WCI 131362500
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131281000
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131370100
24	WCI 131141301
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 131048300
39	131205100 Frigidaire Screw
53	WCI 131130402
56	131243800 Frigidaire Screw
