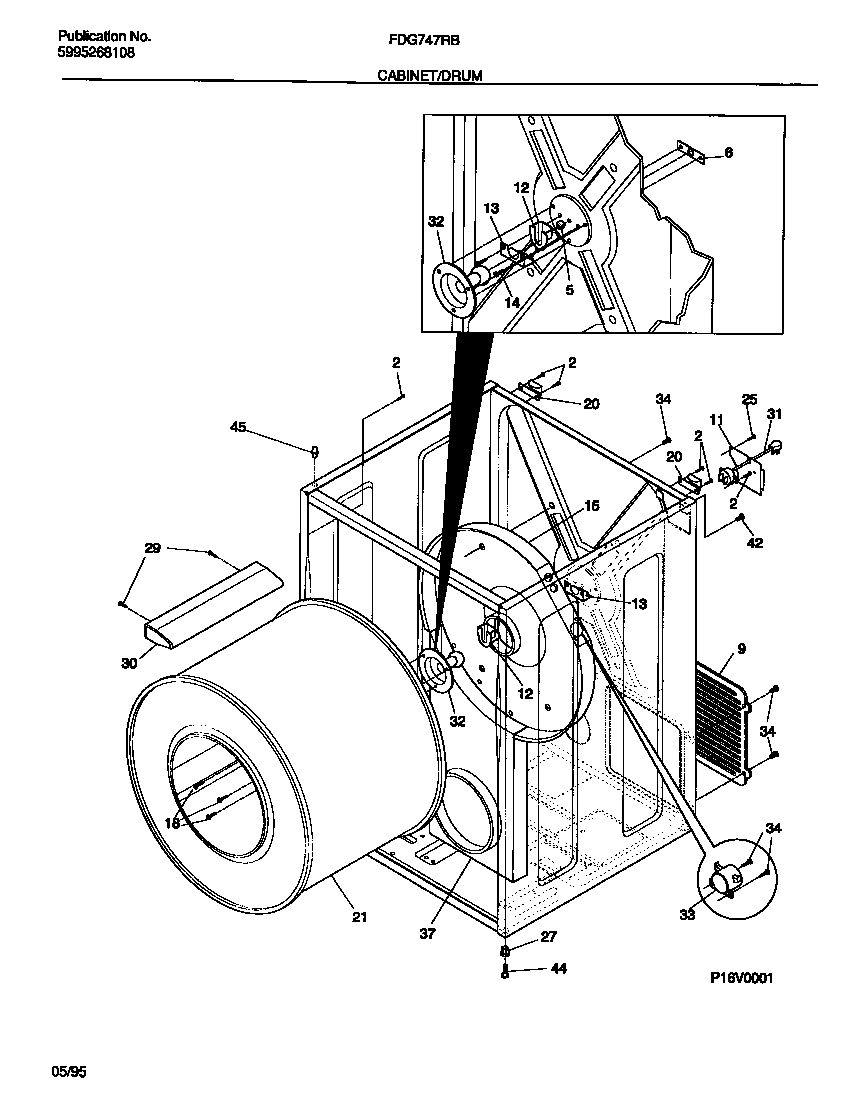

FDG747RBT1 02 – CABINET/DRUM

Products

Position	Product
*05841	WCI 131353500
*05842	WCI 5303281153]
*05840	CLIP (2)
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PLATE-COVER
11	WCI 131363200
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HSG & SEAL ASSEMBLY
18	131168200 Frigidaire Dryer Screw
20	BRACKET-HINGE
21	WCI 131217700
25	5303015671 Frigidaire Bracket Termination Screw
27	WCI 3201202
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	CORD-SERVICE
32	131777700 Frigidaire Dryer Bearing Drum
33	5308015399 Frigidaire P-1 THERMSTAT-Safety
34	131243700 Frigidaire Screw
37	DUCT-HEAT
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	BOLT-FOOT (4)
45	WCI 131346400
