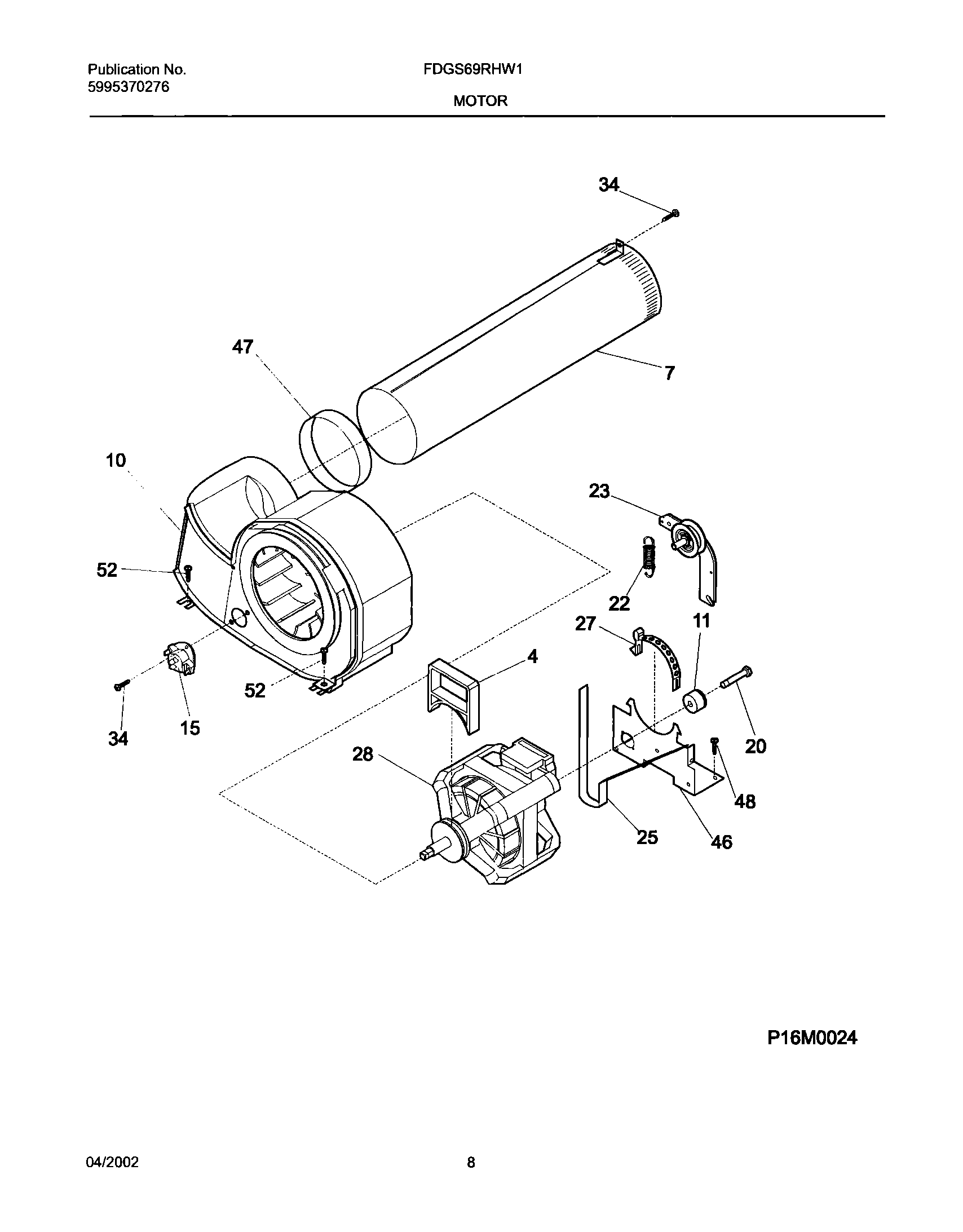

FDGS69RHW1 09 – MOTOR,BLOWER

FDGS69RHW1 09 – MOTOR,BLOWER

Written by

in

FDGS69RHW1 09 – MOTOR,BLOWER

Products

PositionProduct
NITube,exhaust ,side/bottom ,Optional Kit
4131435200 Frigidaire Fan Housing Lock
7Tube,exhaust ,rear ,w/mtg bracket
10ASMY-BLWR HSG/COV/W
11131749800 Frigidaire Spacer
15WCI 131298400
20131017900 Frigidaire Screw
22131601000 Frigidaire Idler Spring Assembly
23131863007 Frigidaire Washer Idler Pulley Assembly
25134503600 Frigidaire Dryer Belt
27WCI 131419800
28131560100 Frigidaire Dryer Drive Motor with Pulley
34131243700 Frigidaire Screw
46WCI 131601100
47WCI 131633300
48131168200 Frigidaire Dryer Screw
52131202300 Frigidaire Screw
