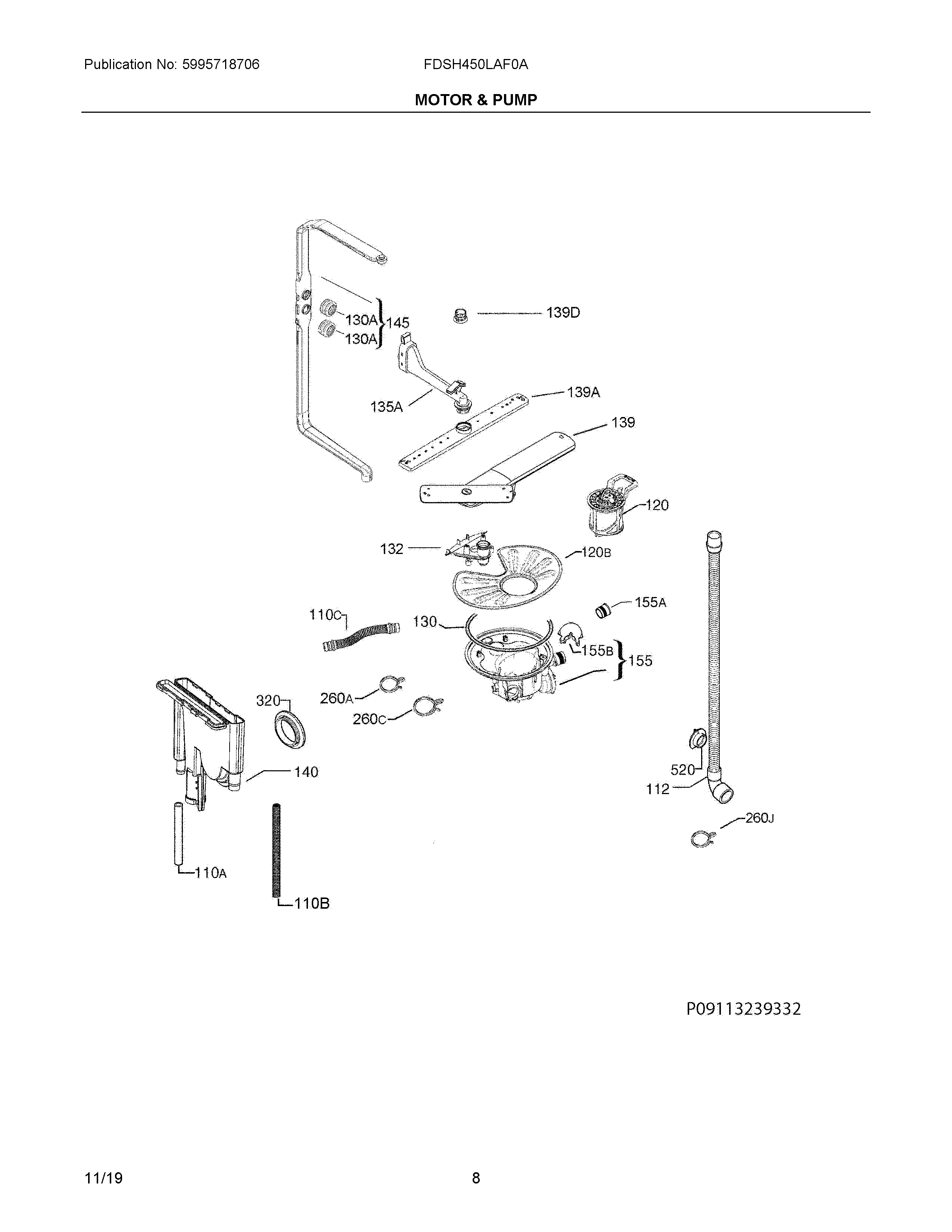

FDSH450LAF0A 05 – MOTOR & PUMP

FDSH450LAF0A 05 – MOTOR & PUMP

Written by

in

FDSH450LAF0A 05 – MOTOR & PUMP

Products

PositionProduct
NISCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110A807526501 Frigidaire Dishwasher Tubing Assembly
110B117281425 Frigidaire Dishwasher Hose
110CA01256402 Frigidaire Dishwasher Hose
112807032601 Frigidaire Dishwasher Hose
120A00201409 Frigidaire Dishwasher Drain Filter
120B808429704 Frigidaire Dishwasher Filter
130AA00045701 Frigidaire Dishwasher Seal
130111918600 Frigidaire Dishwasher O-Ring
132A11243702 Frigidaire Dishwasher Spray Arm
135AA00060305 Frigidaire Dishwasher Duct Assembly
139D111918300 Frigidaire Dishwasher Cover
139AA05814602 Frigidaire Dishwasher Spray Arm
139111922663 Frigidaire Dishwasher Spray Arm
140A01087405 Frigidaire Dishwasher Water Tank
145A00023205 Frigidaire Dishwasher Manifold
155B111917701 Frigidaire Dishwasher Screen
155AA00053601 Frigidaire Dishwasher Flapper
1555304520660 Frigidaire Dishwasher Sump Assembly
260A807868902 Frigidaire Dishwasher Clamp
260C807868903 Frigidaire Dishwasher Clamp
260J807868901 Frigidaire Dishwasher Clamp
320152627221 Frigidaire Dishwasher GRILL
520807201901 Frigidaire Dishwasher Flange
