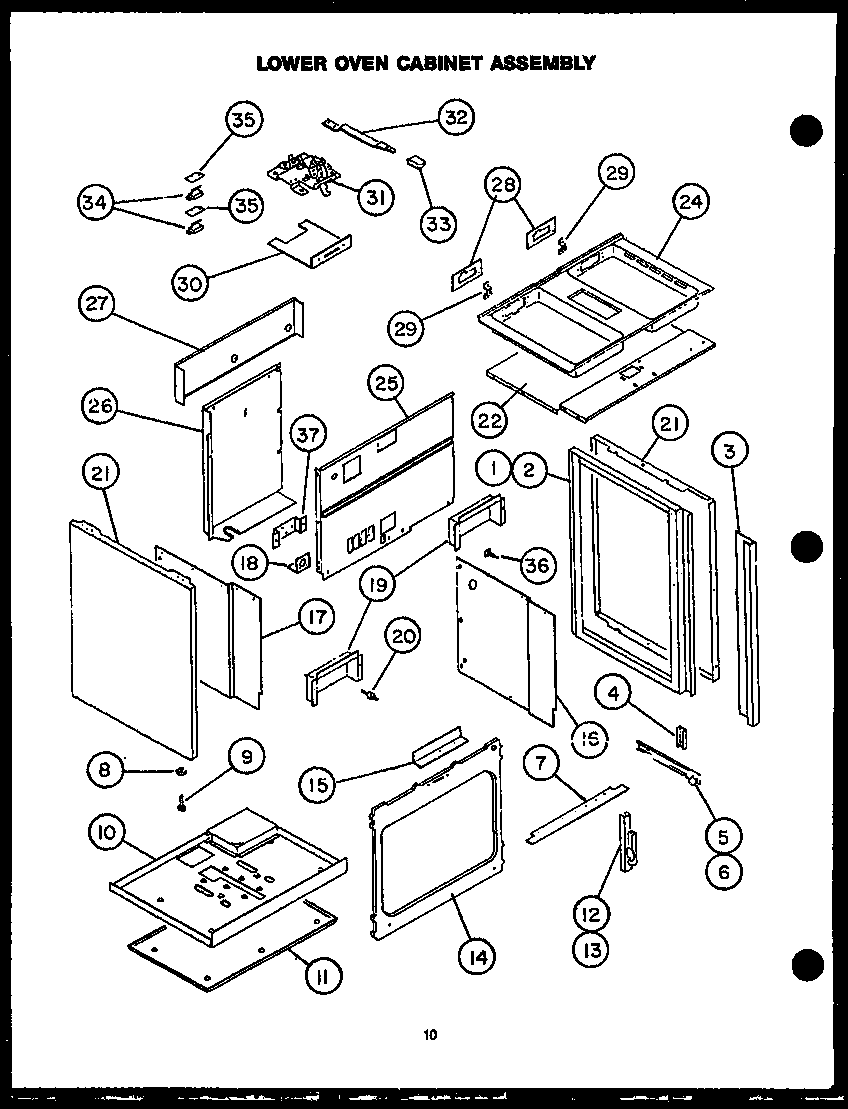

FDU185 04 – LOWER OVEN CABINET ASSY
Written by
in
FDU185 04 – LOWER OVEN CABINET ASSY
Products
Position
Product
NI
MAY Y0068091
1
MAY Y0061231
2
MAY 0061230
3
MAY 0300571
4
MAY Y0058557
5
MAY Y0058559
6
MAY Y0058558
7
MAY 0062750
8
MAY 0076204
9
MAY Y0062362
10
MAY Y0058566
11
MAY W10125478
12
MAY Y0066954
13
MAY Y0066952
14
SEE NOTE GROUND WIRE, GREEN
15
MAY 0061443
16
MAY Y0057443
17
MAY 0057442
18
MAY Y0058556
19
MAY W10125644
20
MAY 0060237
21
MAY W10124823
21
MAY W10124846
22
MAY Y0058581
24
MAY 300294E
25
MAY W10126557
26
MAY Y0058543
27
MAY Y0058544
28
MAY Y0300498
29
MAY Y0040965
30
MAY 0068101
31
MAY Y0300327
32
MAY Y0063141
33
MAY Y0067844
34
MAY Y0065780
34
MAY Y0042052
35
MAY Y0091523
36
MAY Y0300662
37
MAY Y0301327
←
