FE3130 06 – FRONT FRAME & AIR SHROUD – Aparts

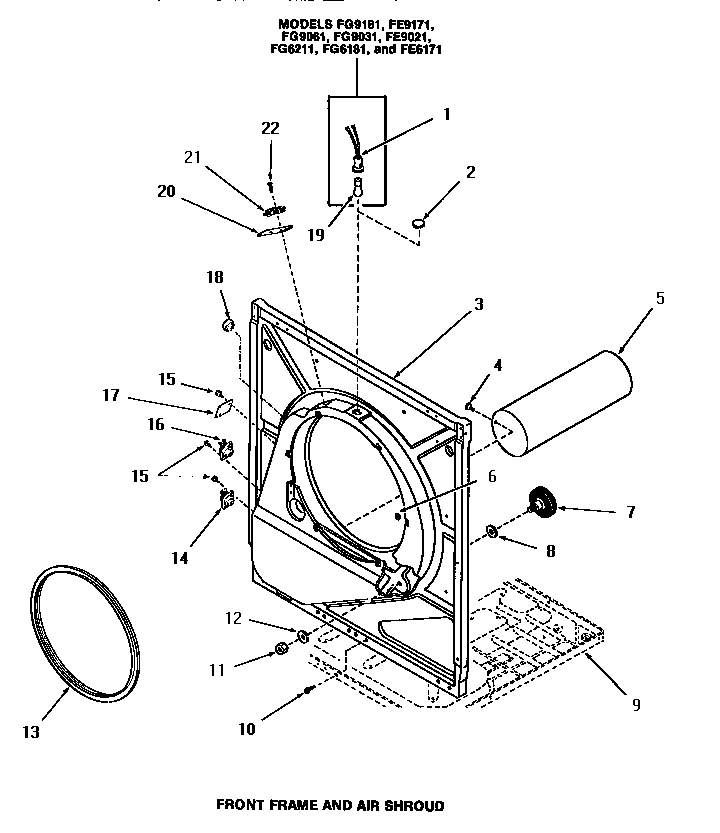

FE3130 06 – FRONT FRAME & AIR SHROUD

Products

Position	Product
1	MAY Y0054609
2	MAY 54610
3	MAY 51850
4	MAY 52150
5	MAY 51821
6	MAY 52865
7	MAY 53555
8	MAY 52123
9	SEE NOTE GROUND WIRE, GREEN
10	MAY 25723
11	MAY 52124
12	MAY 52122
13	MAY 51789
14	MAY 54736
15	WP3177991 Whirlpool Screw
16	MAY 54737
17	MAY 52550
18	MAY Y0053719
19	MAY Y54608
20	MAY 52112
21	MAY Y51143
22	MAY 51783
