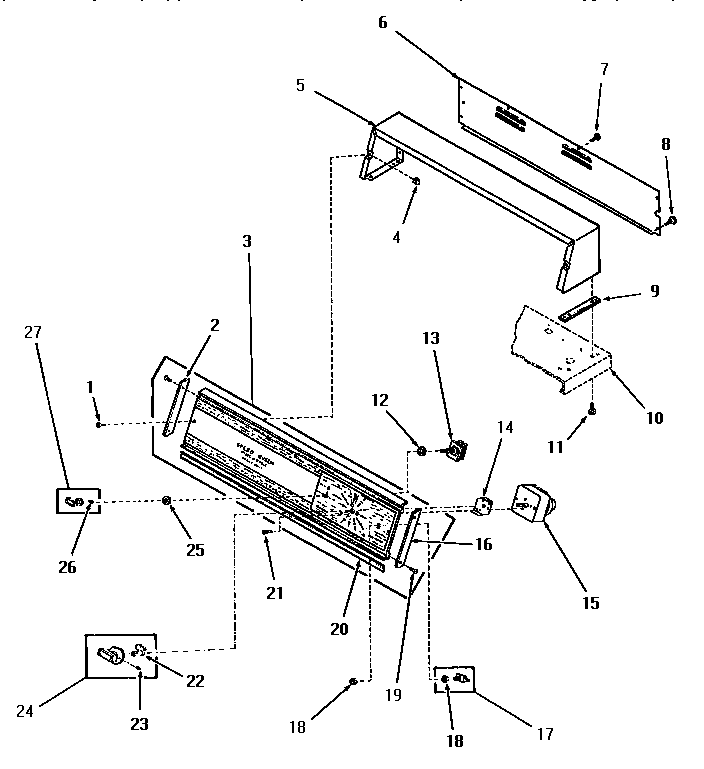

FE3830 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

FE3830 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Written by

in

FE3830 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Products

PositionProduct
1MAY 25232
2MAY 25072
3MAY Y54971
4MAY 54038
5MAY 52530W
5MAY 52530H
5MAY 52530A
6MAY 52539GR
7WP3177991 Whirlpool Screw
8MAY 25724
9MAY 23028
10SEE NOTE GROUND WIRE, GREEN
11WP90767 Whirlpool Screw
12MAY 91176
13MAY 52624
14MAY 25966
15MAY 52594
16MAY 25073
17MAY 53768
18MAY 52947
19MAY 52864
20MAY Y0053880
21MAY Y0054441
22MAY 24283
23MAY 20310
24MAY 24290
25MAY 24205
26MAY 23392
27MAY 24291
