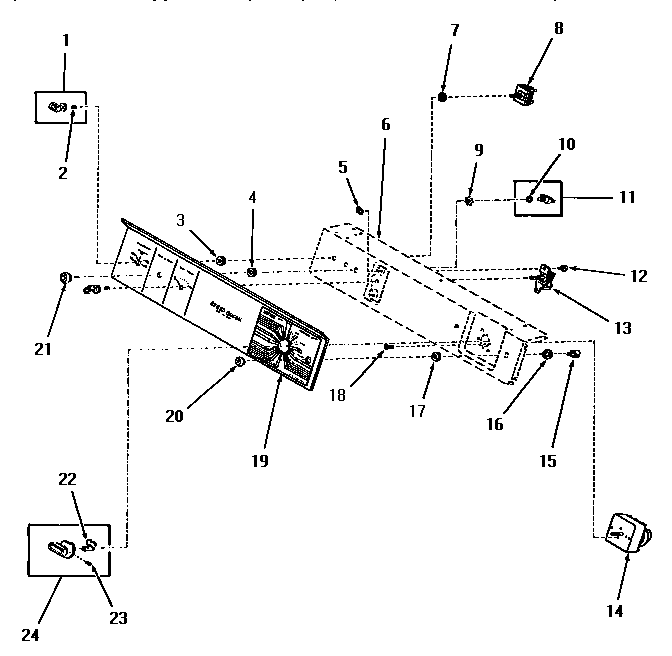

FE9171 04 – CONTROL PANEL AND CONTROLS

Products

Position	Product
1	MAY 26816
2	MAY 23392
3	MAY 24391
4	MAY 23406
5	MAY 23407
6	SEE NOTE GROUND WIRE, GREEN
8	MAY 52623
9	MAY 25820
10	MAY 52947
11	MAY 55878
12	WP90767 Whirlpool Screw
13	MAY 53516
14	MAY 53466
15	MAY 23401
16	MAY 91176
17	MAY 23400
18	MAY 70212
19	MAY 55877
20	MAY 23399
21	MAY 23130
22	MAY 24283
23	MAY 20310
24	MAY 55900
