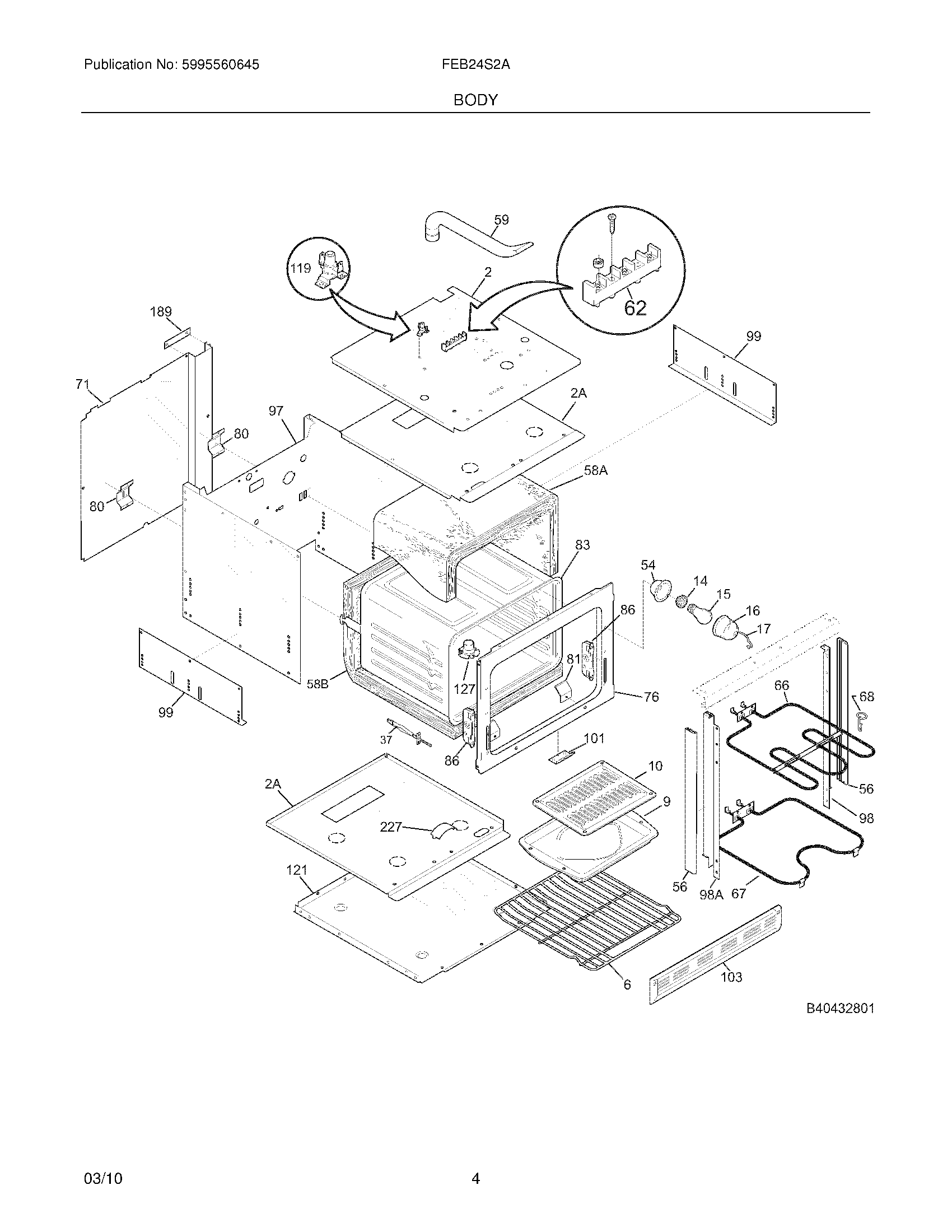

FEB24S2ABE 05 – BODY

FEB24S2ABE 05 – BODY

Written by

in

FEB24S2ABE 05 – BODY

Products

PositionProduct
NICLIP-WIRE
NISCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
NIWCI 318199750
NI5304461333 Frigidaire Oven Screw
NIWCI 5303302745
NI5303211311 Frigidaire Refrigerator Screw
NI5303324184 Frigidaire Wall Oven Range Screw
NI316205500 Frigidaire Oven Nut
NIWCI 318078563
NI08002868 Frigidaire 0 Screw Assembly
2ASHIELD, OVEN BOTTOM
2WCI 318195900
6318345216 Frigidaire Oven Rack
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
54WCI 318222400
56WCI 5303298951
58BWCI 318285003
58AWCI 318285004
59WCI 318549800
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255606 Frigidaire Range Oven Broil Element
67318255101 Frigidaire Oven Bake Element
685304403015 Frigidaire Oven Support
71SHIELD-WIRE
76WCI 318056141
80WCI 318192400
81WCI 5303323710
83WCI 318089520
86318561100 Frigidaire Receptacle
97WRAPPER-BACK SIDE
98WCI 318029384
98AWCI 318029385
99318284201 Frigidaire PANEL
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028710
119318003605 Frigidaire Thermostat
121WCI 318145005
127WCI 318317000
189RETAINER PLATE
227WCI 318370900
