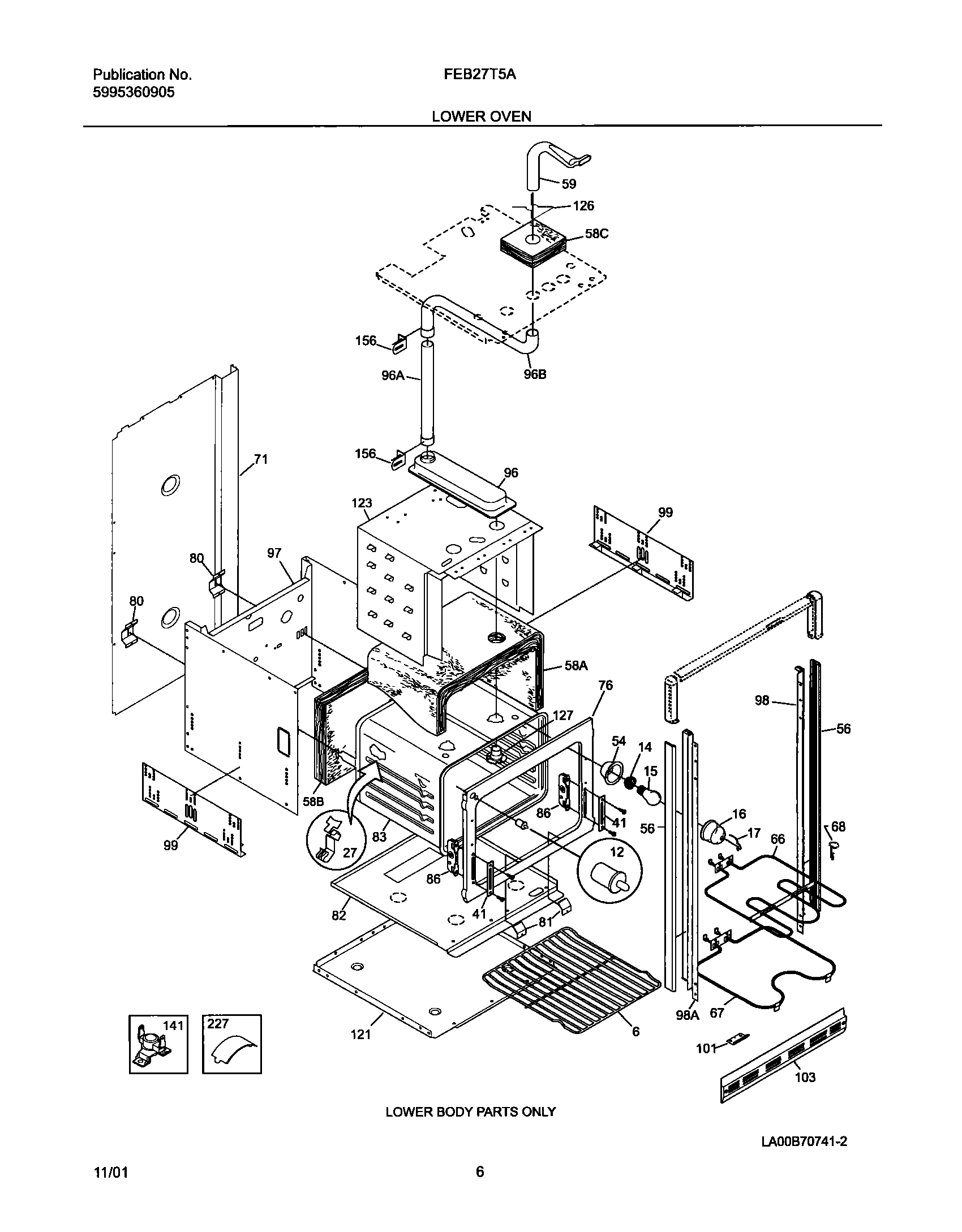

FEB27T5ABA 07 – LOWER OVEN

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 5303302745
NI	WCI 5303320505
NI	5303211311 Frigidaire Refrigerator Screw
6	318345216 Frigidaire Oven Rack
12	WCI 5301314211
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
27	5303284616 Frigidaire Range Bulb Clip Thermostat
41	WCI 5303310526
54	WCI 5303310514
56	WCI 5303300956
58A	WCI 318133710
58C	WCI 5303317714
58B	WCI 318133704
59	WCI 318072507
66	5303016247 Frigidaire Broil Element
67	318255101 Frigidaire Oven Bake Element
68	5304403015 Frigidaire Oven Support
71	WCI 318071120
76	WCI 318124206
80	WCI 318192400
81	WCI 5303323710
82	WCI 5303304699
83	WCI 318089522
86	WCI 5303310524
96B	DUCT-VENT PIPE
96	WCI 5303317197
96A	Duct,oven vent ,center
97	WCI 318066702
98A	WCI 318029333
98	WCI 318029332
99	318284201 Frigidaire PANEL
101	BRACKET-TRIM (NOT ILLUSTRATED)
103	WCI 318028700
121	WCI 318145002
123	WCI 318071442
126	Clip,insulator
127	WCI 318072800
141	5303302280 Frigidaire Safety Thermostat
156	WCI 5303317198
227	WCI 5303323955
