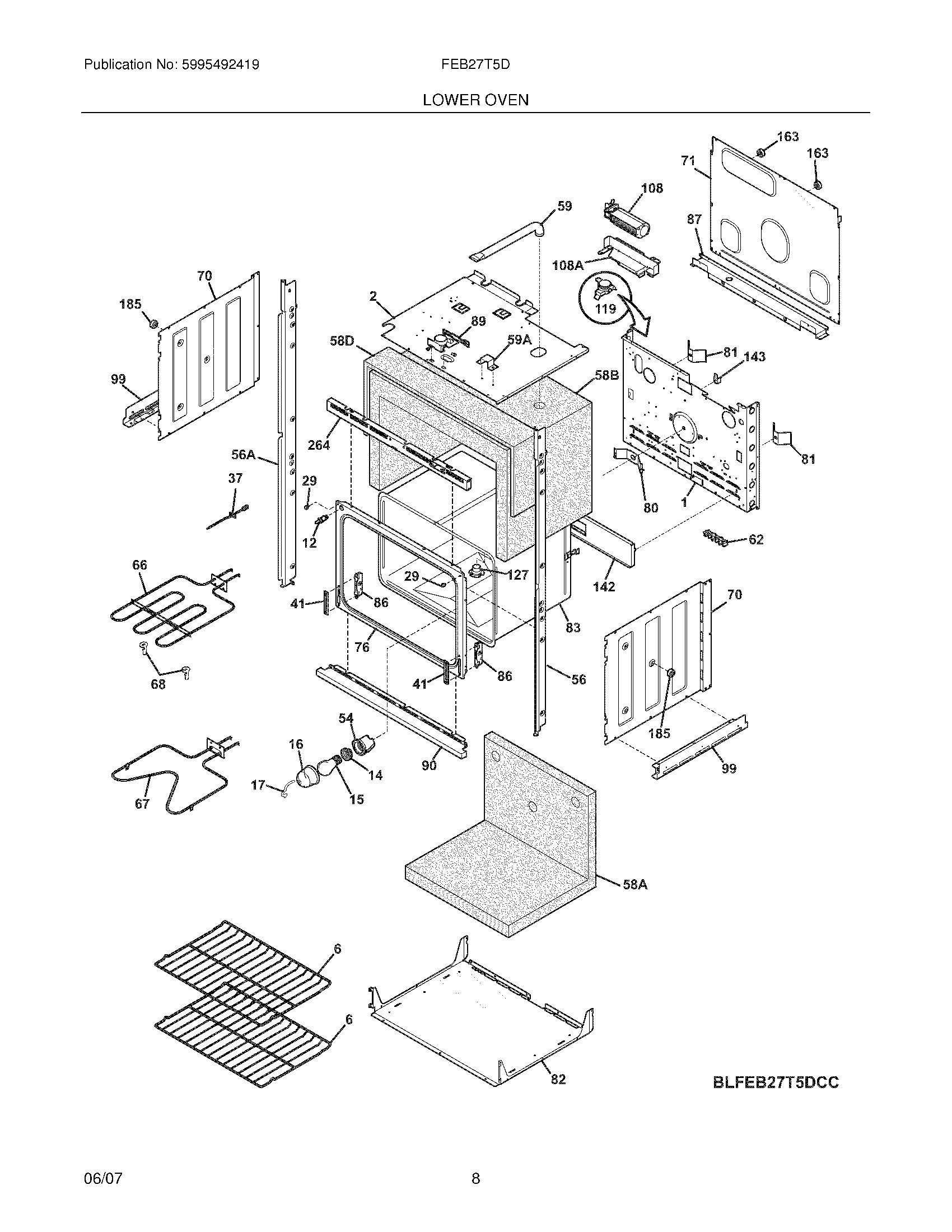

FEB27T5DSE 07 – LOWER OVEN

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
NI	5303323139 Frigidaire Oven Screw
NI	WCI 318370311
NI	5304506955 Frigidaire Harness Assembly
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318268099
NI	WCI 318231750
NI	WCI 318199746
NI	WCI 318199744
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5304436875 Frigidaire Oven Screw
NI	WCI 318340201
1	WCI 318259212
2	WCI 318258910
6	318922301 Frigidaire Oven Rack
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
29	318147430 Frigidaire Oven Bumper
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
56	WCI 318903602
56A	WCI 318903603
58D	WCI 318285058
58B	WCI 318285059
58A	WCI 318285060
59A	WCI 318261600
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255606 Frigidaire Range Oven Broil Element
67	318255103 Frigidaire Oven 2300W Bake Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259100
71	WCI 318260001
76	WCI 318056222
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258710
83	WCI 318261502
86	WCI 318342400
87	WCI 318260601
89	318261229 Frigidaire Oven Motor
90	WCI 318259710
99	318256201 Frigidaire Oven Bracket
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
119	318004900 Frigidaire Thermal Switch
127	318317100 Frigidaire Adapter Assembly
142	WCI 318123910
143	318172904 Frigidaire Bracket
163	WCI 318014111
185	318531800 Frigidaire Oven Spacer
264	WCI 318257811
