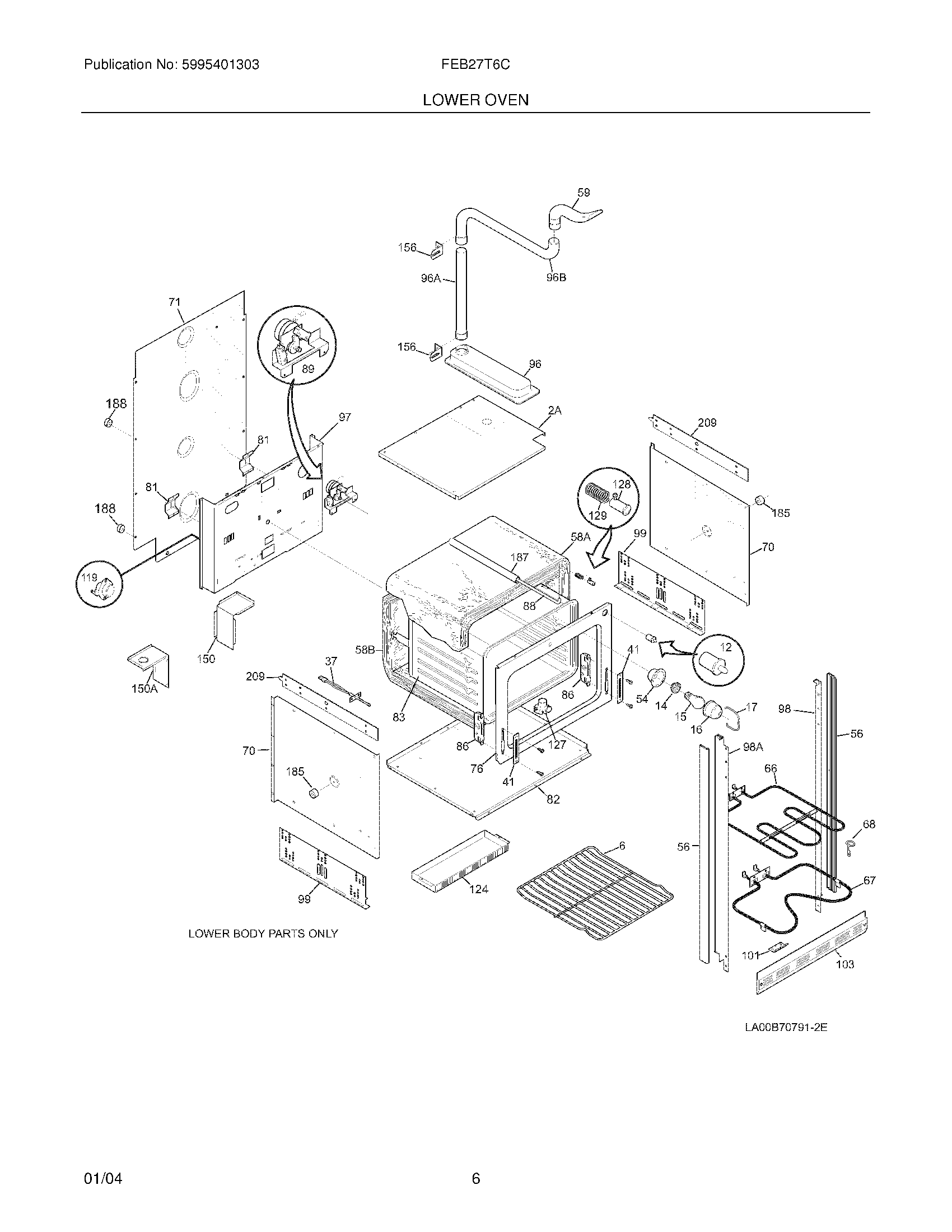

FEB27T6CBA 07 – LOWER OVEN

Products

Position	Product
NI	08002868 Frigidaire 0 Screw Assembly
NI	5303323139 Frigidaire Oven Screw
NI	WCI 318120711
NI	WCI 318078530
NI	3201861 Frigidaire Screw
NI	WCI 5303302745
NI	5304415832 Frigidaire Oven Screw
NI	5303308456 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303284616 Frigidaire Range Bulb Clip Thermostat
NI	5303323277 Frigidaire Oven Screw
NI	WCI 5303320422
2A	WCI 318071502
6	WCI 5303299719
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
56	WCI 5303300956
58B	WCI 318133749
58A	WCI 318133758
59	WCI 318072510
66	5303016247 Frigidaire Broil Element
67	318255100 Frigidaire Oven Range Bake Element, 2300W
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
71	WCI 318071212
76	WCI 318056104
81	WCI 318192400
82	WCI 318071802
83	WCI 318089517
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
96A	Duct,oven vent ,center
96B	DUCT-VENT PIPE
96	WCI 5303317197
97	WCI 318066703
98	WCI 318029352
98A	WCI 318029353
99	WCI 318055420
101	BRACKET-TRIM (NOT ILLUSTRATED)
103	WCI 318028700
119	318004900 Frigidaire Thermal Switch
124	WCI 318076904
127	WCI 318072801
128	WCI 5303311528
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
150	WCI 318072204
150	WCI 318072205
156	WCI 5303317198
185	318531800 Frigidaire Oven Spacer
187	WCI 318013501
188	318531702 Frigidaire Oven Spacer
209	WCI 318086210
