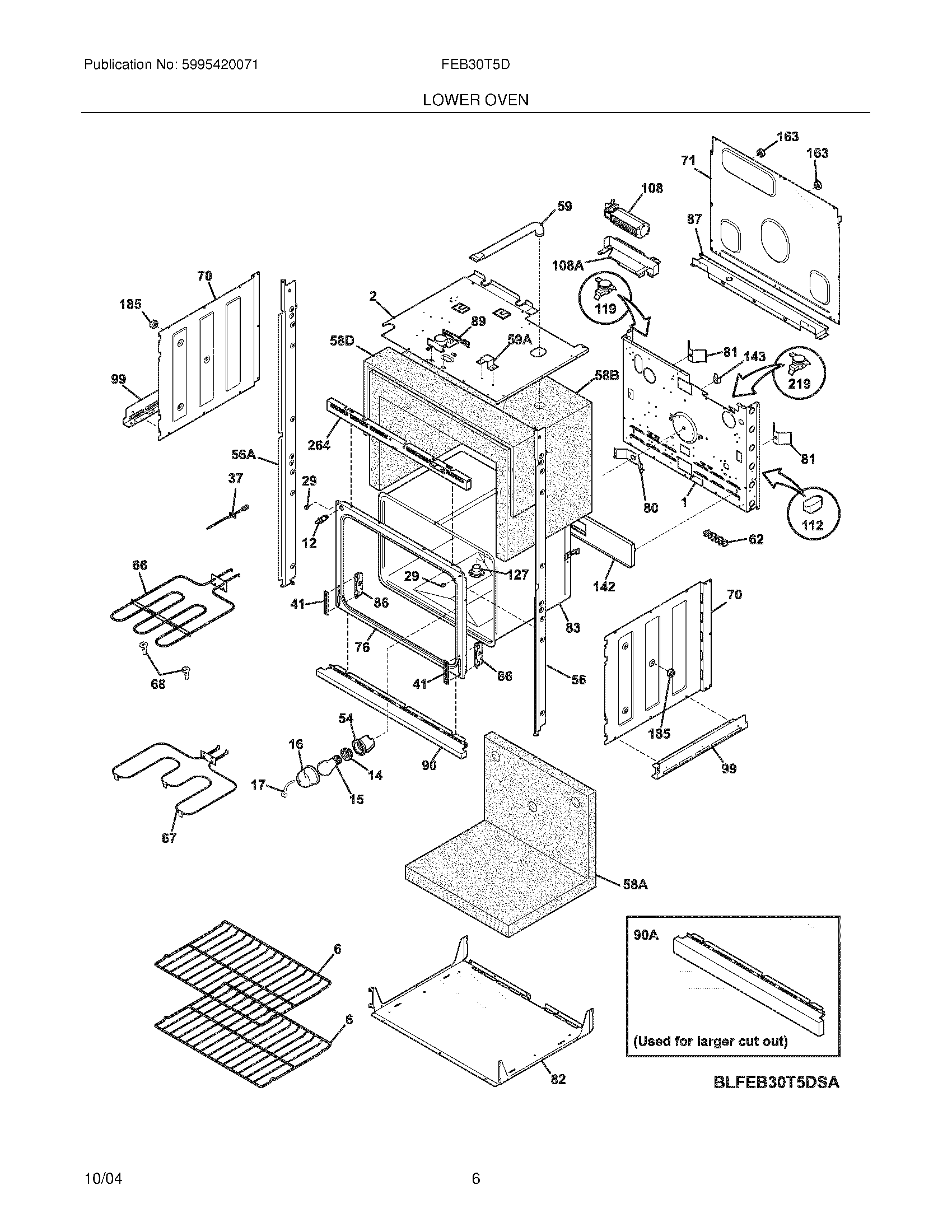

FEB30T5DSA 07 – LOWER OVEN

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	WCI 318231708
NI	WCI 318231705
NI	3201861 Frigidaire Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	316205500 Frigidaire Oven Nut
NI	5304480396 Frigidaire Screw
NI	CLIP-WIRE
NI	5304415832 Frigidaire Oven Screw
NI	5303323139 Frigidaire Oven Screw
NI	5304506955 Frigidaire Harness Assembly
NI	5303325980 Frigidaire Oven Screw
NI	WCI 318268099
NI	5304436875 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
1	WCI 318259200
2	WCI 318258900
6	WCI 318262502
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
29	318147430 Frigidaire Oven Bumper
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
56A	WCI 318259913
56	WCI 318259912
58D	WCI 318133793
58A	Insulation,oven wrapper ,back/bottom
58B	WCI 318133790
59A	WCI 318261600
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255605 Frigidaire Oven Broil Element Range
67	318255401 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259100
71	WCI 318260004
76	WCI 318056217
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258700
83	WCI 318261403
86	WCI 5303310524
87	WCI 318260602
89No.	318261213 Frigidaire Oven Motor
90A	WCI 318259703
90	WCI 318259700
99	318256201 Frigidaire Oven Bracket
108	318073028 Frigidaire Oven Motor
108	WCI 318251300
112	WCI 318112701
119	318004900 Frigidaire Thermal Switch
127	318317100 Frigidaire Adapter Assembly
142	WCI 318123910
143	318172904 Frigidaire Bracket
163	WCI 318014111
185	318531800 Frigidaire Oven Spacer
219	WCI 318003606
264	WCI 318257801
