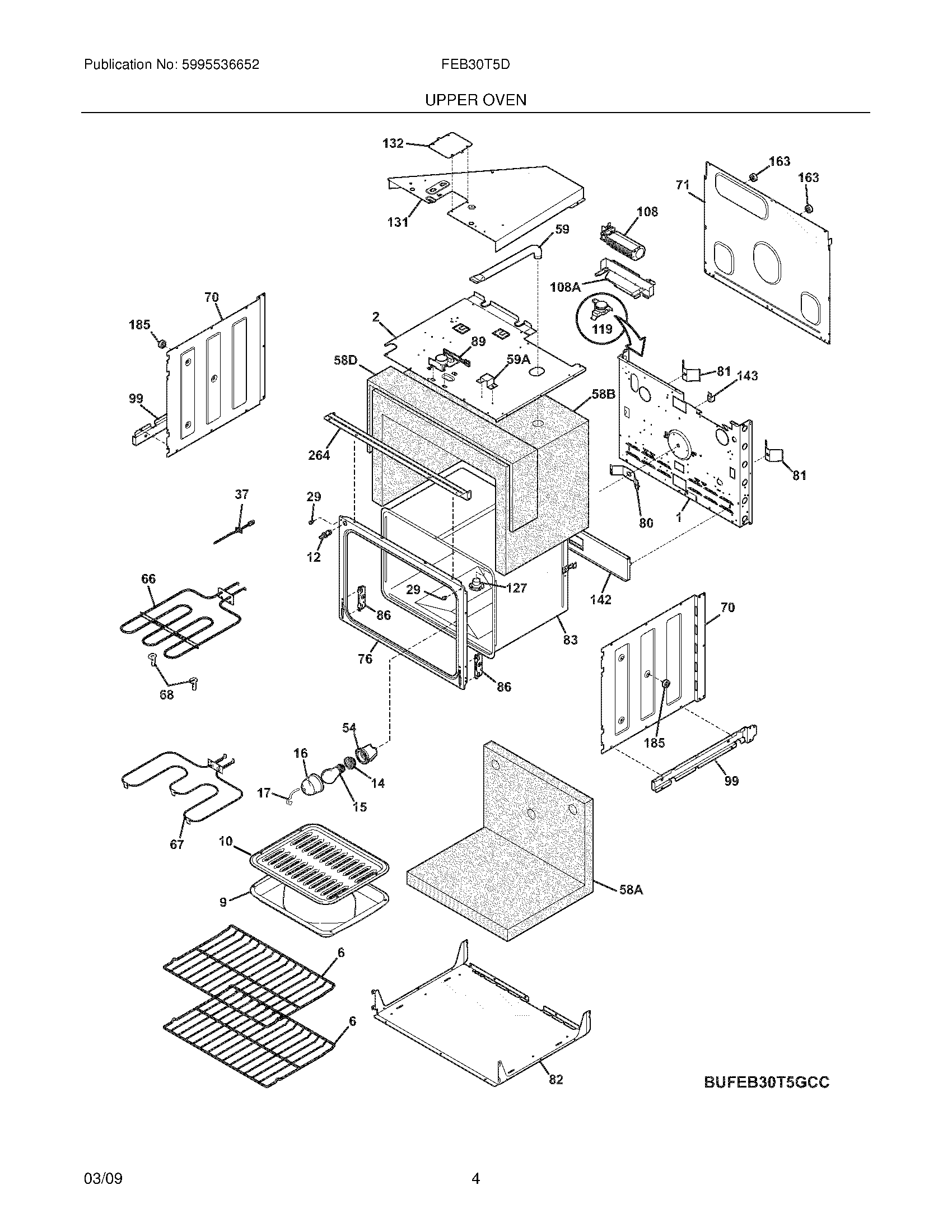

FEB30T5DSG 05 – UPPER OVEN

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	WCI 318340201
NI	WCI 318199768
NI	5304461333 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	WCI 318402206
NI	5303211311 Frigidaire Refrigerator Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	5303323277 Frigidaire Oven Screw
NI	WCI 318199746
NI	5304436875 Frigidaire Oven Screw
NI	WCI 318268099
1	WCI 318259220
2	WCI 318258902
6	WCI 318345207
9	WCI 5303317977
10	WCI 5303317976
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
29	316517600 Frigidaire Oven Spacer
37	316217002 Frigidaire Oven Temperature Probe
54	WCI 318222400
58A	WCI 318386100
58D	WCI 318372006
58B	Insulation,oven wrapper ,back/bottom
59A	WCI 318261600
66	318255605 Frigidaire Oven Broil Element Range
67	318255401 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259100
71	WCI 318260007
76	WCI 318056292
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258707
83	WCI 318261403
86	318561100 Frigidaire Receptacle
89	318261229 Frigidaire Oven Motor
99	WCI 318252804
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
119	318004900 Frigidaire Thermal Switch
127	318317100 Frigidaire Adapter Assembly
131	WCI 318272901
132	318003000 Frigidaire Plate
142	WCI 318123910
143	318172904 Frigidaire Bracket
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
264	WCI 318257701
