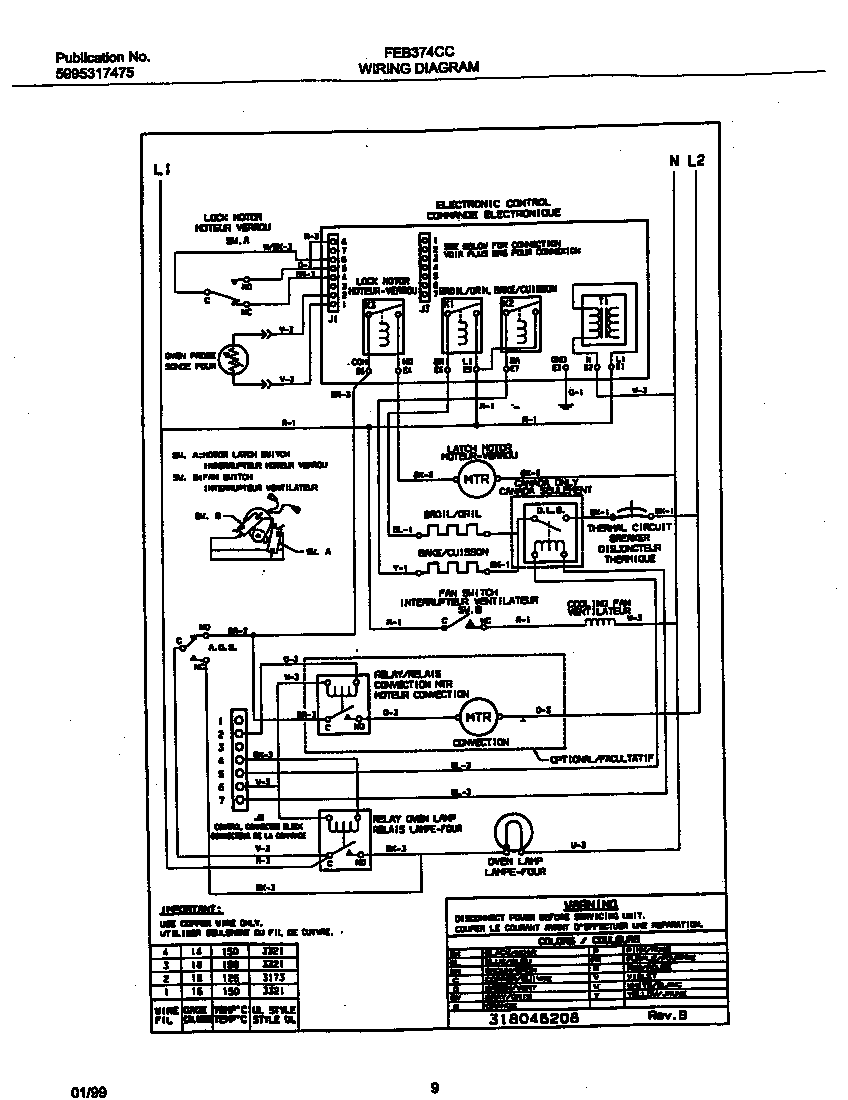

FEB374CCSH 05 – WIRING DIAGRAM

Products

Position	Product
*11020	5303323277 Frigidaire Oven Screw
*11019	WCI 5303300414
3	WCI 318026125
4	WCI 318041301
6	WCI 318056801
7	WCI 5303310532
7	WCI 5303311233
9	WCI 318048604
10	WCI 5303311217
12	318053103 Frigidaire Oven Door Seal Gasket
15	BRACKET-GLASS,(3)
16	GLASS-OVEN DOOR, HEAT BARRIER
17	WCI 318139000
18	SEAL-ROPE
20	WCI 318014301
22	WCI 5303310511
23	WCI 5303310506
29	SPACER-HANDLE MTG, (2)
31	WCI 318065100
39	HANDLE-DOOR,WHITE ,OVEN
54	5303308456 Frigidaire Oven Screw
59	PLUG, DOOR LINER
