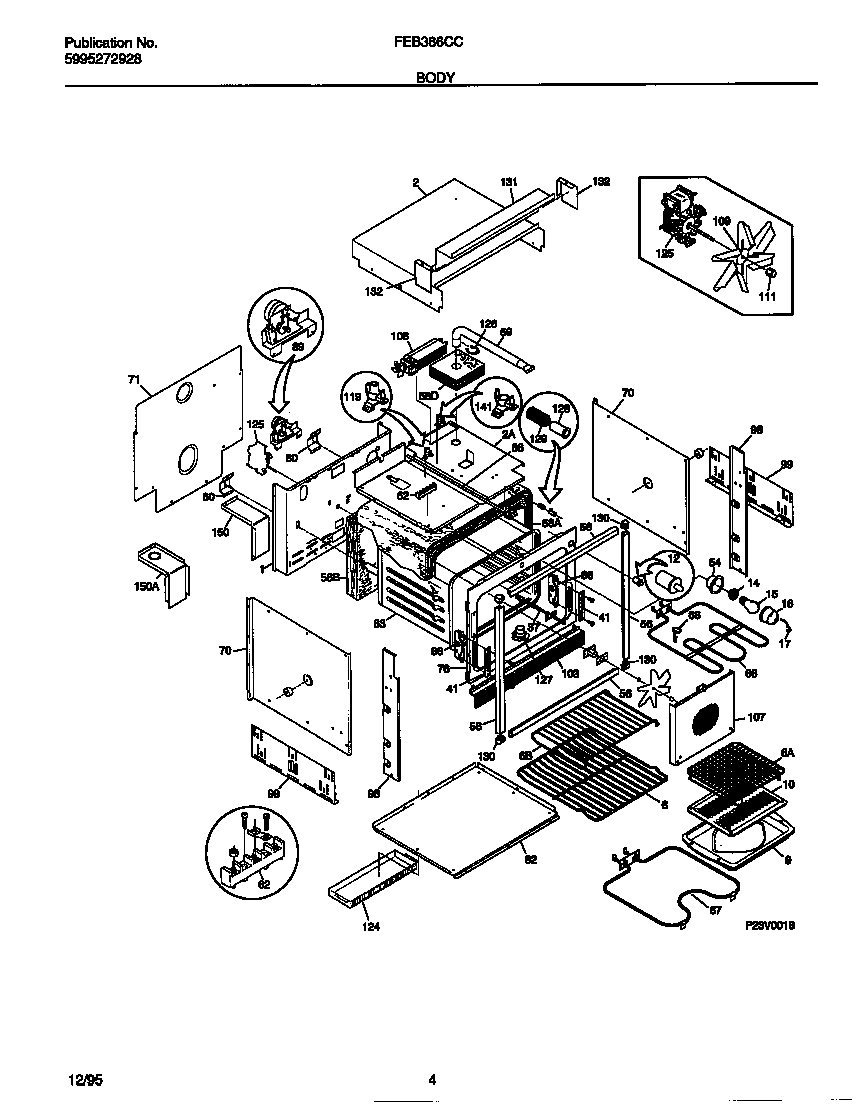

FEB386CCS1 03 – BODY

Products

Position	Product
*13046	08002868 Frigidaire 0 Screw Assembly
*13047	5303211311 Frigidaire Refrigerator Screw
*13045	SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*13043	WCI 5303311207
*13048	WCI 5303311528
*13044	3201861 Frigidaire Screw
1	WCI 5303310527
2	WCI 318071700
2	WCI 318102100
6	Shelf,broiler pan
6	318025314 Frigidaire Oven Rack
9	WCI 5303310521
10	WCI 5303310520
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
37B	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56	TOP TRIM,WHITE ,(4)
58	INSULATION WRAPPER
58	WCI 5303311220
58	WCI 5303310538
59	WCI 318072504
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	WCI 5303307563
70	WCI 5303300142
71	WCI 318071200
76	WCI 318056201
80	WCI 5303301261
82	WCI 318072300
83	WCI 5303311201
86	WCI 5303310524
88	WCI 5303311222
89	WCI 5303311223
98B	WCI 318029203
98A	WCI 318029201
99	WCI 318055400
103	WCI 318028501
107	WCI 5303311204
108	WCI 318073001
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
124	WCI 318076901
125	5303311202 Frigidaire P1-Motor-Conv
126	Clip,insulator
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
130	WCI 318070501
131	WCI 318102300
132B	WCI 318101801
132A	WCI 318101800
141	Thermostat,safety ,for fan
150	WCI 318072202
150	WCI 318072203
