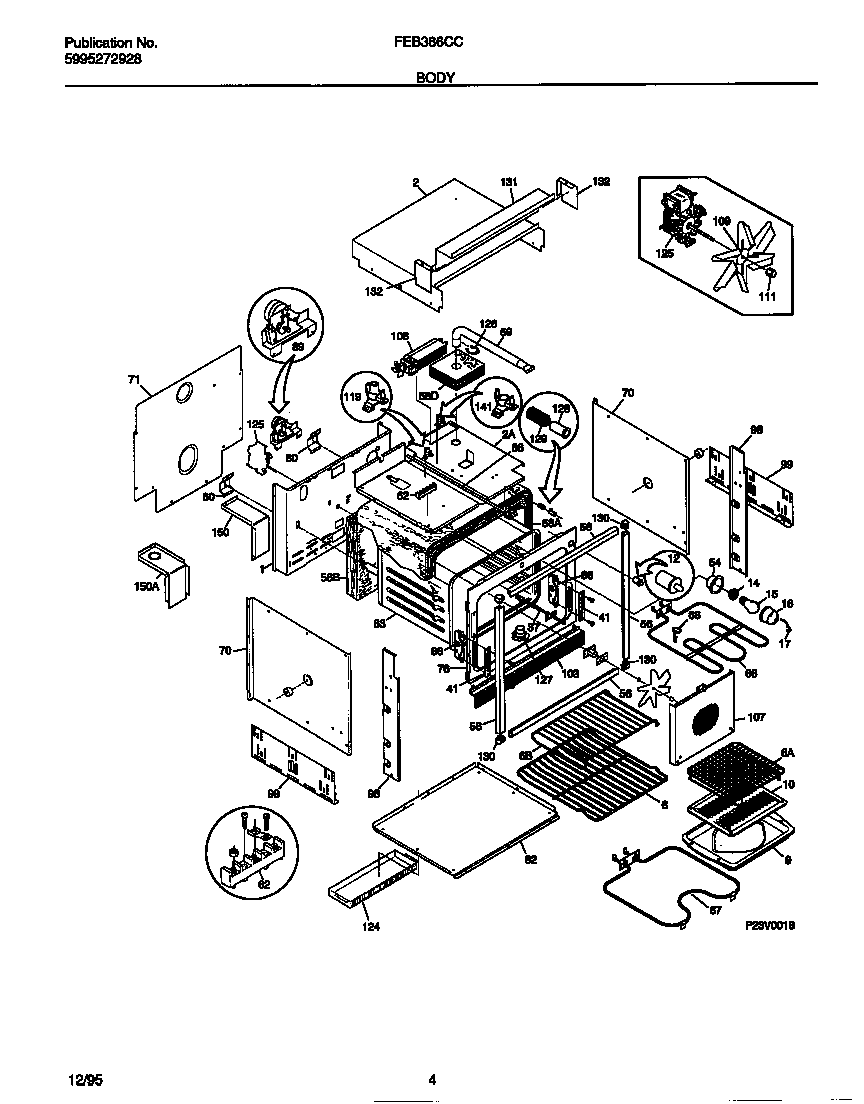

FEB386CCSA 03 – BODY

FEB386CCSA 03 – BODY

Written by

in

FEB386CCSA 03 – BODY

Products

PositionProduct
*1304608002868 Frigidaire 0 Screw Assembly
*130475303211311 Frigidaire Refrigerator Screw
*13045SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*13043WCI 5303311207
*13048WCI 5303311528
*130443201861 Frigidaire Screw
1WCI 5303310527
2WCI 318071700
2WCI 318102100
6Shelf,broiler pan
6318025314 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303310520
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TOP TRIM,WHITE ,(4)
58INSULATION WRAPPER
58WCI 5303311220
58WCI 5303310538
59WCI 318072504
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 318071200
76WCI 318056201
80WCI 5303301261
82WCI 318072300
83WCI 5303311201
86WCI 5303310524
88WCI 5303311222
89WCI 5303311223
98BWCI 318029203
98AWCI 318029201
99WCI 318055400
103WCI 318028501
107WCI 5303311204
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076901
1255303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070501
131WCI 318102300
132BWCI 318101801
132AWCI 318101800
141Thermostat,safety ,for fan
150WCI 318072202
150WCI 318072203
