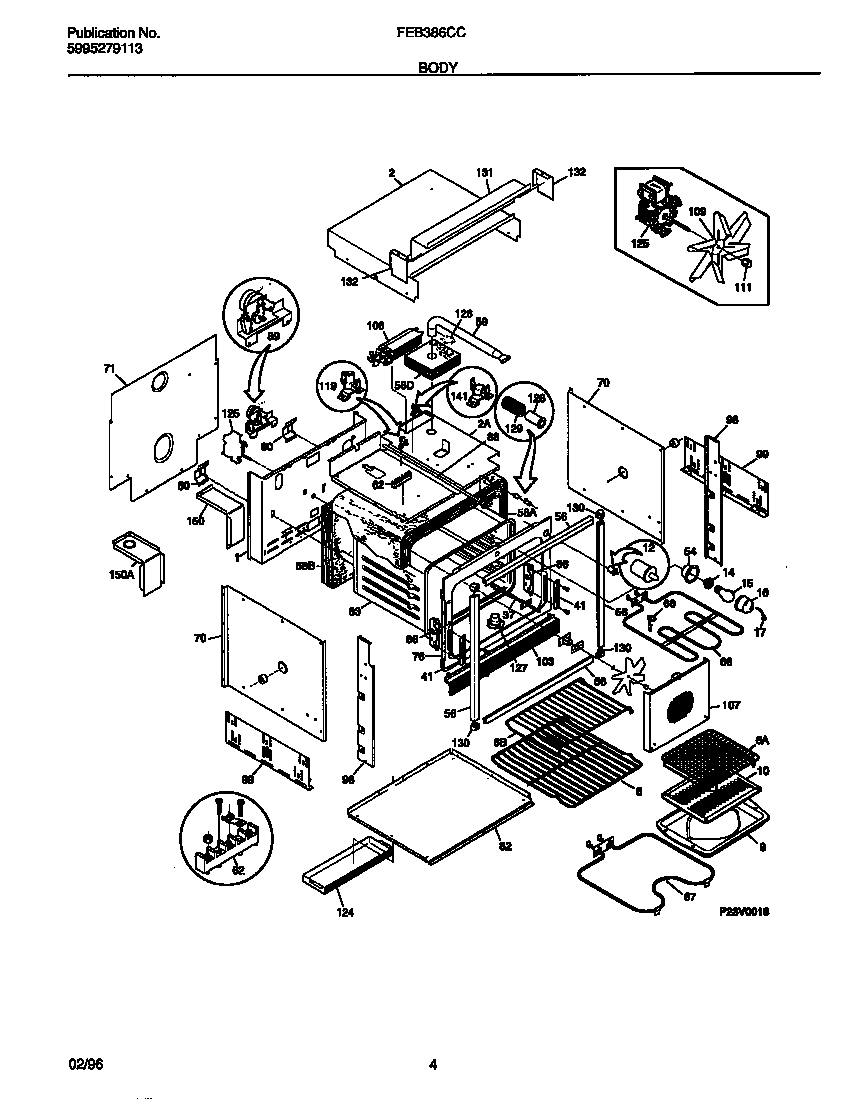

FEB386CCSB 03 – BODY

Products

PositionProduct
*2596308002868 Frigidaire 0 Screw Assembly
*259655303211311 Frigidaire Refrigerator Screw
*25966WCI 5303311528
*25967WCI 318052007
*25964SCREW, 8 X 5/8, SPARK MODULE
1WCI 5303310527
2WCI 318102100
2WCI 318071700
6318025314 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303310521
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56TOP TRIM,WHITE ,(4)
58WCI 5303311220
58INSULATION WRAPPER
58WCI 5303310538
59WCI 318072504
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 318071200
76WCI 318056202
80WCI 5303301261
82WCI 318072300
83WCI 318089603
86WCI 5303310524
88WCI 5303311222
89AWCI 5303311223
89B3201861 Frigidaire Screw
98AWCI 318029201
98BWCI 318029203
99WCI 318055400
103WCI 318028501
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076901
1255303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070501
131WCI 318102300
132BWCI 318101801
132AWCI 318101800
141Thermostat,safety ,for fan
150WCI 318072204
150WCI 318072205
