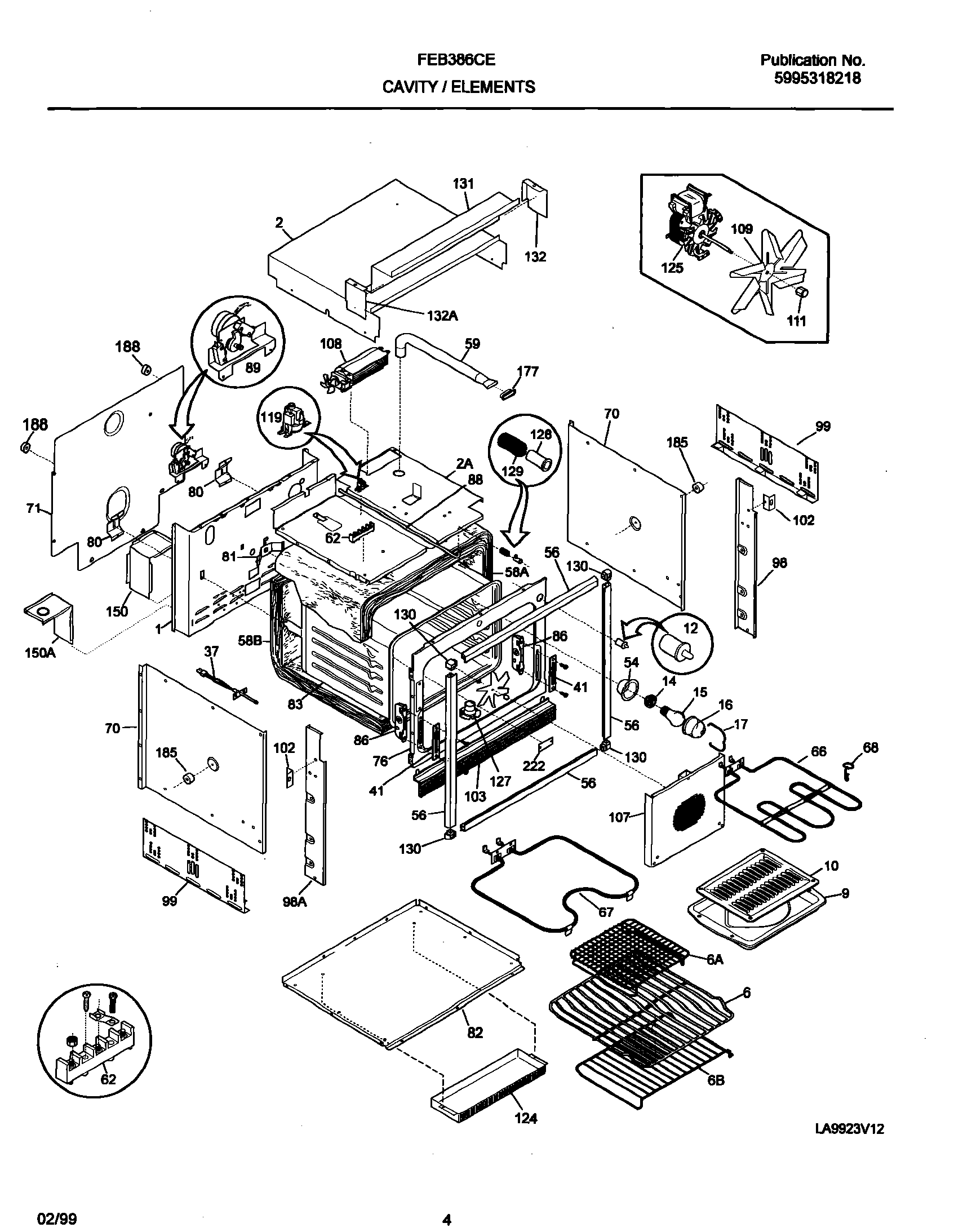

FEB386CEBG 05 – CAVITY / ELEMENTS

FEB386CEBG 05 – CAVITY / ELEMENTS

Written by

in

FEB386CEBG 05 – CAVITY / ELEMENTS

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
NISCREW, 8 X 5/8, SPARK MODULE
NIWCI 318078511
NI5303324184 Frigidaire Wall Oven Range Screw
NI5304480396 Frigidaire Screw
NICLIP-WIRE
NI5303323139 Frigidaire Oven Screw
NIWCI 5304407813
NI5303323277 Frigidaire Oven Screw
NIWCI 5303302745
NI5303323137 Frigidaire Oven Screw
1WCI 5303310527
2WCI 318102100
2AWCI 318071700
6AShelf,broiler pan
6B318025314 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-BODYSIDE, BLACK, (4)
58AINSULATION WRAPPER
58BWCI 5303310538
59WCI 318072504
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071200
76WCI 318056202
80WCI 5303301261
81WCI 5303320846
82WCI 318072300
83Liner,oven
86WCI 5303310524
88WCI 5303311222
89WCI 318120702
89WCI 5304404899
98AWCI 318029203
98WCI 318029201
99WCI 318055420
102WCI 318090900
103WCI 318028500
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
125WCI 5303320346
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070800
131WCI 318102301
132WCI 318101800
132AWCI 318101801
150AWCI 318072204
150WCI 318072205
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
