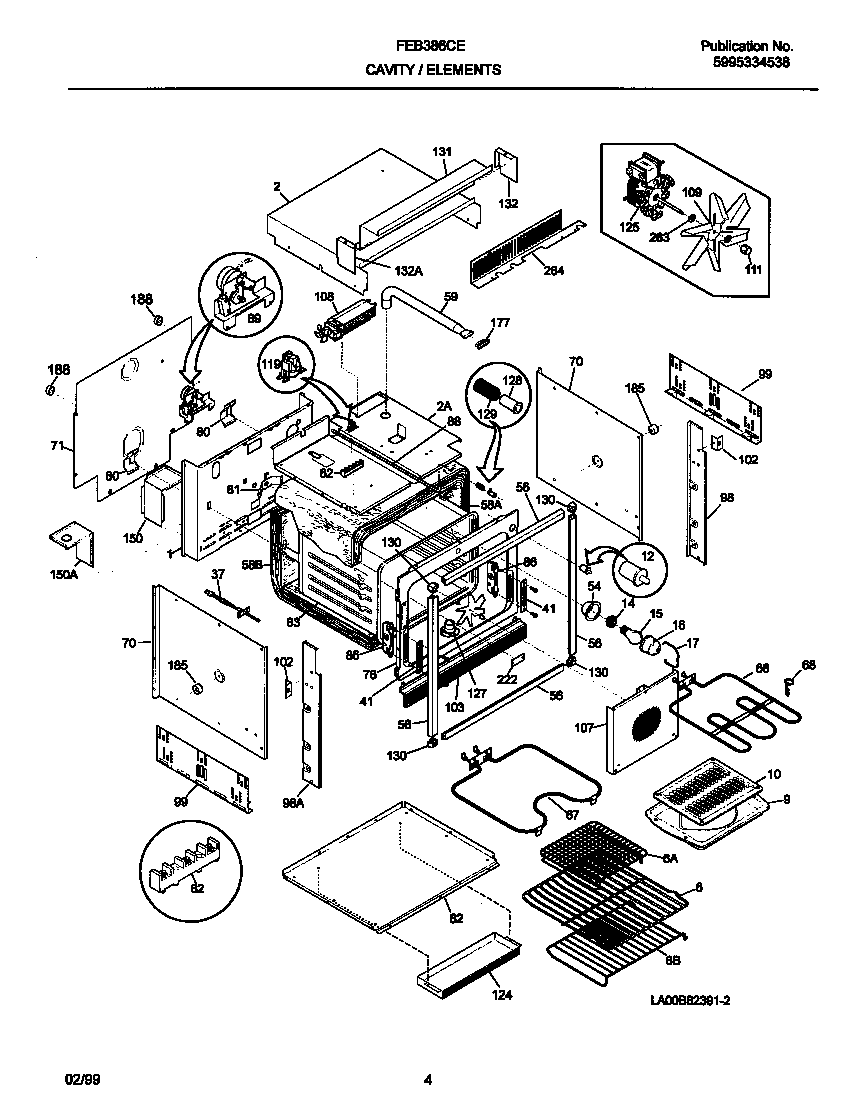

FEB386CEBH 03 – CAVITY/ELEMENTSadmin2025-04-26T08:53:22+00:00FEB386CEBH 03 – CAVITY/ELEMENTS
Products
| Position | Product |
|---|
| *23896 | 5303300265 Frigidaire Oven Screw |
| *23893 | SCREW, 8 X 5/8, SPARK MODULE |
| *23905 | WCI 318096002 |
| *23904 | WCI 318078511 |
| *23902 | 5303324184 Frigidaire Wall Oven Range Screw |
| *23900 | 5304480396 Frigidaire Screw |
| *23892 | CLIP-WIRE |
| *23895 | 5303211311 Frigidaire Refrigerator Screw |
| *23899 | WCI 5303311528 |
| *23898 | 5304464772 Frigidaire Refrigerator Wire Tie |
| *23901 | 5303323277 Frigidaire Oven Screw |
| *23894 | 3201861 Frigidaire Screw |
| *23903 | WCI 5304407813 |
| *23897 | WCI 5303302745 |
| 1 | WCI 318066402 |
| 2 | WCI 318102101 |
| 2 | WCI 318071703 |
| 6 | 318025314 Frigidaire Oven Rack |
| 6 | Shelf,broiler pan |
| 9 | WCI 5303317977 |
| 10B | WCI 5303317976 |
| 10A | WCI 318126400 |
| 12 | 318394803 Frigidaire Oven Switch |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | WCI 5304400195 |
| 37 | 316217002 Frigidaire Oven Temperature Probe |
| 41 | WCI 5303310526 |
| 54 | WCI 5303310514 |
| 56 | TRIM-BODYSIDE, BLACK, (4) |
| 58 | WCI 5303316994 |
| 58 | WCI 5303310538 |
| 58 | INSULATION WRAPPER |
| 59 | WCI 318072504 |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 66 | 318255605 Frigidaire Oven Broil Element Range |
| 67 | BAKE ELEMENT |
| 68 | 5304403015 Frigidaire Oven Support |
| 70 | WCI 5303300142 |
| 71 | WCI 318071201 |
| 76 | WCI 318056202 |
| 80 | WCI 5303301261 |
| 81 | WCI 5303320846 |
| 82 | SHIELD-INSULATION |
| 83 | Liner,oven |
| 86 | WCI 5303310524 |
| 88 | WCI 5303311222 |
| 89B | WCI 318120710 |
| 89A | 318095956 Frigidaire Oven Motor |
| 98 | WCI 318029203 |
| 98 | WCI 318029201 |
| 99 | WCI 318055420 |
| 102 | WCI 318090900 |
| 103 | WCI 318028500 |
| 107 | WCI 318119600 |
| 108 | WCI 318073001 |
| 109 | FAN BLADE |
| 111 | 316136600 Frigidaire Oven Range Lock Nut |
| 119 | 318004900 Frigidaire Thermal Switch |
| 124 | WCI 318076903 |
| 125 | 5303311202 Frigidaire P1-Motor-Conv |
| 127 | 318317100 Frigidaire Adapter Assembly |
| 128 | WCI 5303311163 |
| 129 | 5303311164 Frigidaire Oven Spring |
| 130 | WCI 318070800 |
| 131 | WCI 318102301 |
| 132B | END-COVER, CONTROL HSG, LH |
| 132A | END-COVER, CONTROL HSG, RH |
| 150B | WCI 318072204 |
| 150A | WCI 318072205 |
| 177 | WCI 318053800 |
| 185 | 318531800 Frigidaire Oven Spacer |
| 188 | 318531702 Frigidaire Oven Spacer |
| 222 | PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED) |
| 263 | 316008401 Frigidaire Washer P-1 |
| 264 | xx<HIDDEN WIRES SHIE |
