FEB386CESA 03 – BODY

FEB386CESA 03 – BODY

Written by

in

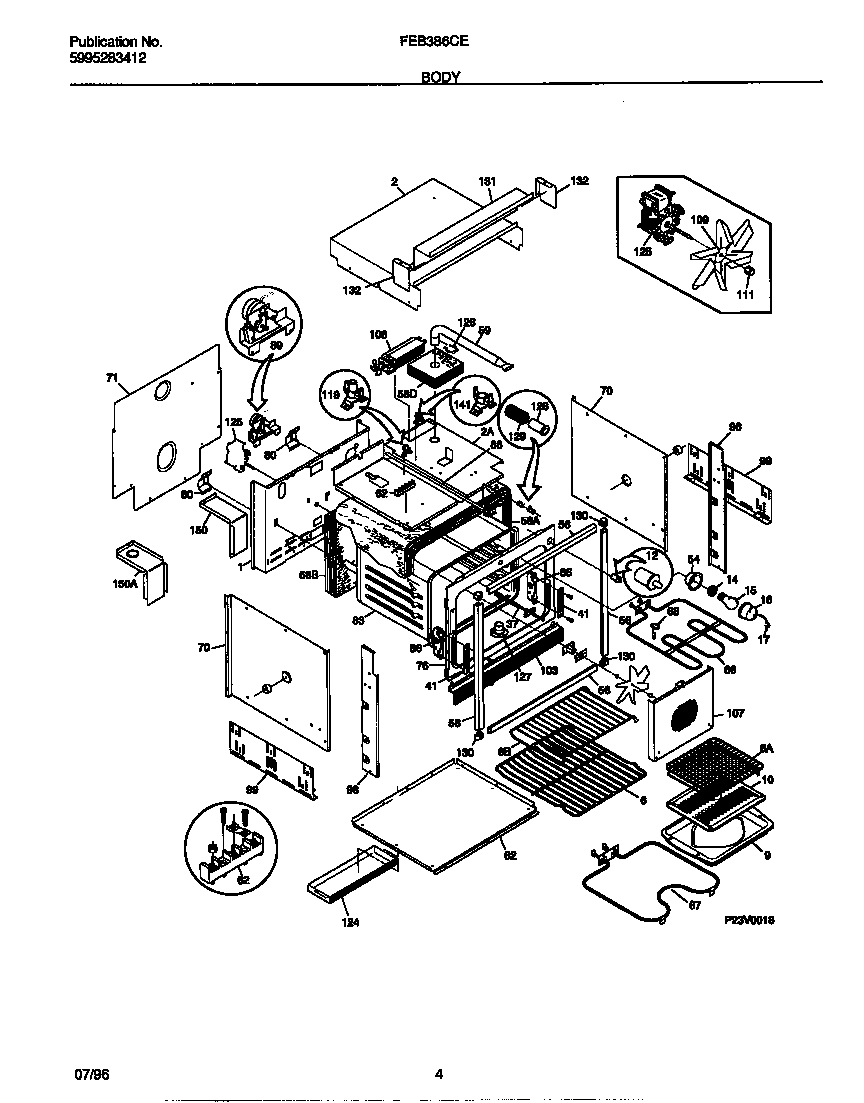

FEB386CESA 03 – BODY

Products

PositionProduct
*22727WCI 318052007
*227255303211311 Frigidaire Refrigerator Screw
*22723SCREW, 8 X 5/8, SPARK MODULE
*22728WCI 318078500
*22726WCI 5303311528
*2272408002868 Frigidaire 0 Screw Assembly
1WCI 5303310527
2WCI 318071700
2WCI 318102100
6Shelf,broiler pan
6318025314 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56TOP TRIM,WHITE ,(4)
58WCI 5303310538
58INSULATION WRAPPER
58WCI 5303311220
59WCI 318072504
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A5304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 318071200
76WCI 318056202
80WCI 5303301261
82WCI 318072300
83WCI 318089603
86WCI 5303310524
88WCI 5303311222
89AWCI 5303311223
89B3201861 Frigidaire Screw
98AWCI 318029201
98BWCI 318029203
99WCI 318055420
103WCI 318028501
107WCI 318119600
108WCI 318073001
109WCI 318137400
111BWCI 318137600
111AWCI 318137700
119318004900 Frigidaire Thermal Switch
124WCI 318076901
125BWCI 5303320346
125AWCI 318137100
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070801
131WCI 318102300
132BWCI 318101801
132AWCI 318101800
141Thermostat,safety ,for fan
150WCI 318072205
150WCI 318072204
