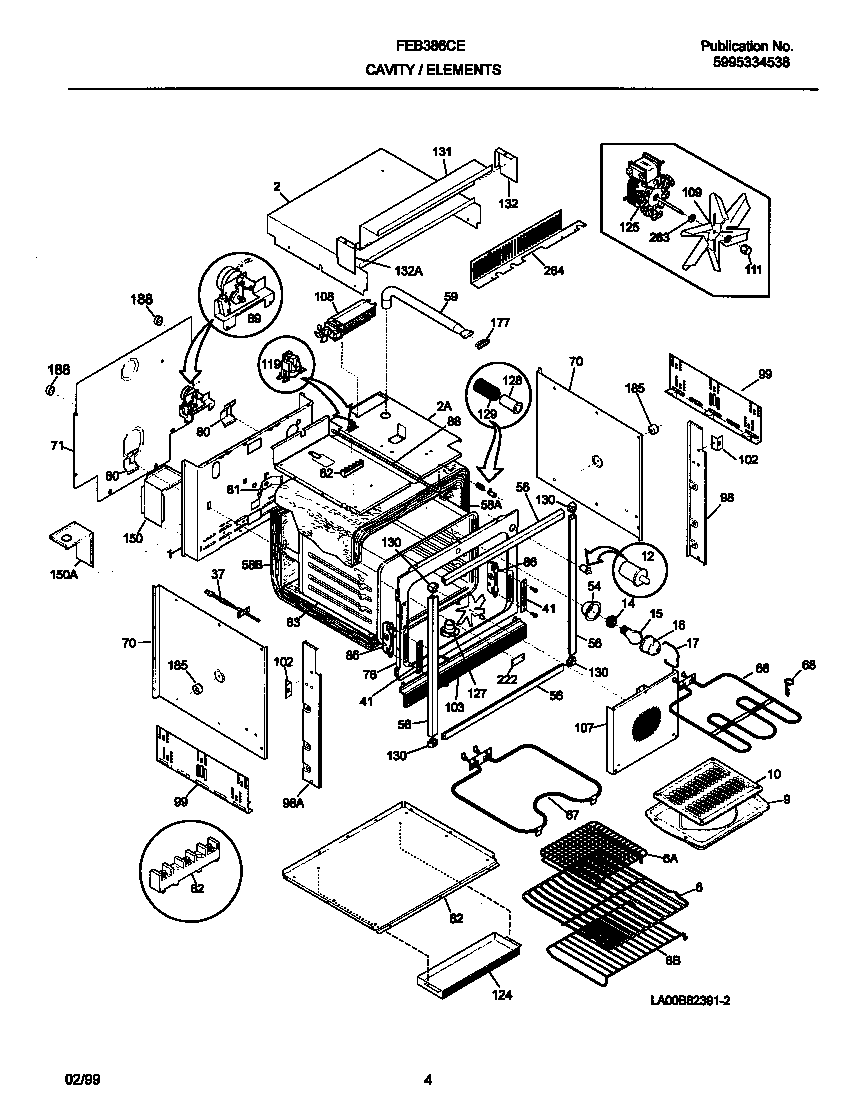

FEB386CESH 03 – CAVITY/ELEMENTS

FEB386CESH 03 – CAVITY/ELEMENTS

Written by

in

FEB386CESH 03 – CAVITY/ELEMENTS

Products

PositionProduct
*238965303300265 Frigidaire Oven Screw
*23892CLIP-WIRE
*239005304480396 Frigidaire Screw
*239025303324184 Frigidaire Wall Oven Range Screw
*23904WCI 318078511
*23905WCI 318096002
*23893SCREW, 8 X 5/8, SPARK MODULE
*238985304464772 Frigidaire Refrigerator Wire Tie
*238955303211311 Frigidaire Refrigerator Screw
*238943201861 Frigidaire Screw
*23899WCI 5303311528
*239015303323277 Frigidaire Oven Screw
*23897WCI 5303302745
*23903WCI 5304407813
1WCI 318066402
2WCI 318102101
2WCI 318071703
6318025314 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303317977
10BWCI 5303317976
10AWCI 318126400
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TOP TRIM,WHITE ,(4)
58INSULATION WRAPPER
58WCI 5303316994
58WCI 5303310538
59WCI 318072504
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071201
76WCI 318056202
80WCI 5303301261
81WCI 5303320846
82SHIELD-INSULATION
83Liner,oven
86WCI 5303310524
88WCI 5303311222
89A318095956 Frigidaire Oven Motor
89BWCI 318120710
98WCI 318029201
98WCI 318029203
99WCI 318055420
102WCI 318090900
103WCI 318028501
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070801
131WCI 318102301
132AEND-COVER, CONTROL HSG, RH
132BEND-COVER, CONTROL HSG, LH
150BWCI 318072204
150AWCI 318072205
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
