FEB386WECH 03 – BODY

FEB386WECH 03 – BODY

Written by

in

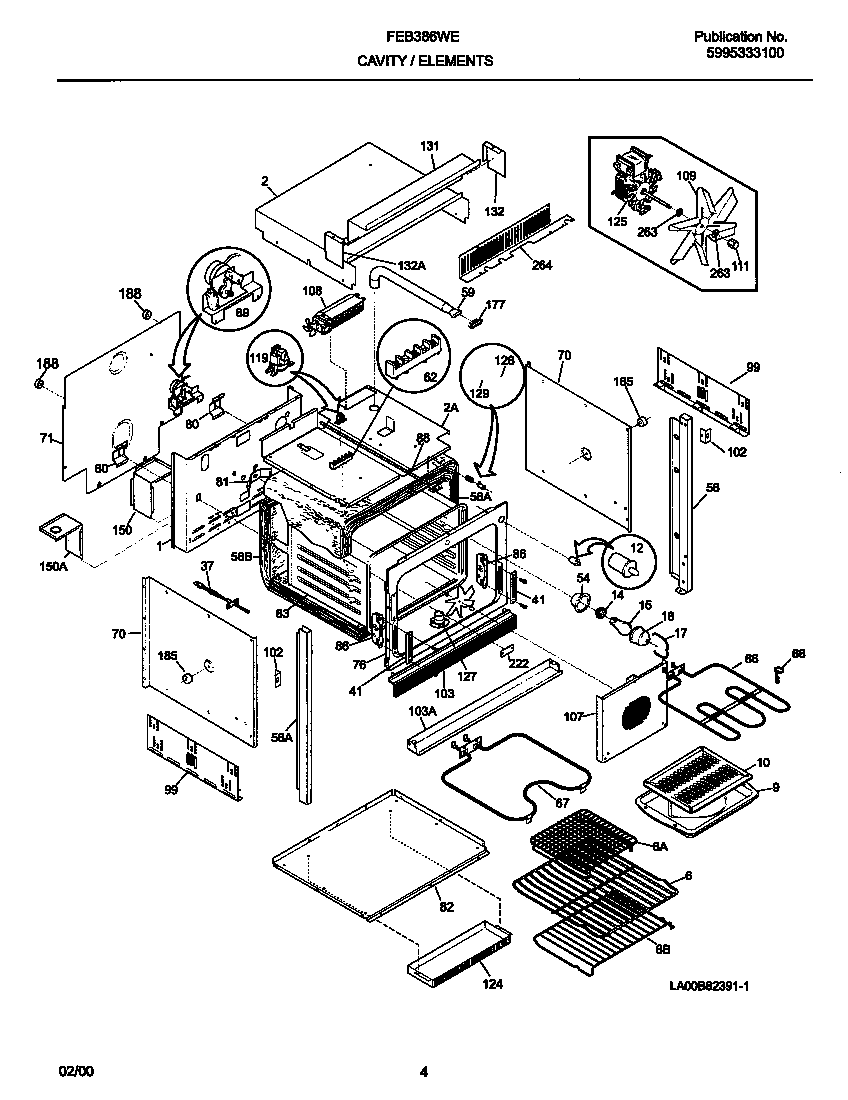

FEB386WECH 03 – BODY

Products

PositionProduct
*100985303323277 Frigidaire Oven Screw
*100915303013272 Frigidaire Oven Nut
*10087CLIP-WIRE
*100975304480396 Frigidaire Screw
*100995303324184 Frigidaire Wall Oven Range Screw
*10101WCI 318078511
*10102WCI 318096002
*10093WCI 5303302745
*10089SCREW, 8 X 5/8, SPARK MODULE
*10088Clip,insulator
*100925303211311 Frigidaire Refrigerator Screw
*100955304464772 Frigidaire Refrigerator Wire Tie
*10096WCI 5303311528
*100903201861 Frigidaire Screw
*100945303307980 Frigidaire Oven Screw
*10100WCI 5304407813
1WCI 318066402
2WCI 318071703
2WCI 318102101
6318025314 Frigidaire Oven Rack
6318345205 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 318138800
10WCI 318126400
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
20318121902 Frigidaire Oven Bracket Assembly
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-BODYSIDE,STAINLESS
58WCI 5303310538
58WCI 5303316994
58INSULATION WRAPPER
58NAMEPLATE
59WCI 318072504
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071201
76WCI 318056202
80WCI 5303301261
81WCI 5303320846
82SHIELD-INSULATION
83Liner,oven
86WCI 5303310524
88WCI 5303311222
89WCI 318120710
99WCI 318055420
102WCI 318090900
103TRIM-BASE,STAINLESS
103WCI 318028500
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102301
132END-COVER, CONTROL HSG, RH
132END-COVER, CONTROL HSG, LH
150WCI 318072204
150WCI 318072205
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
264xx<HIDDEN WIRES SHIE
