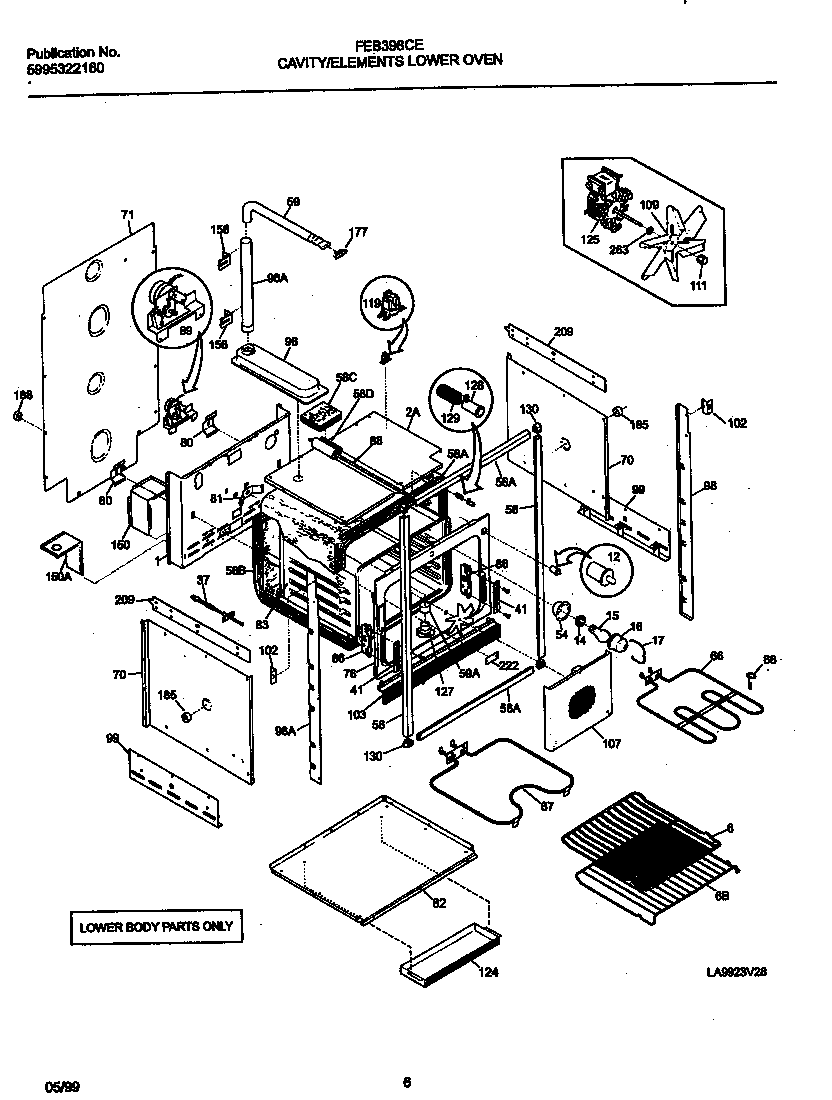

FEB398CEBC 04 – LOWER BODY

FEB398CEBC 04 – LOWER BODY

Written by

in

FEB398CEBC 04 – LOWER BODY

Products

PositionProduct
*194945303300265 Frigidaire Oven Screw
*19486WCI 318120701
*19492TAPE-INNER DOOR 45“
*194905303211311 Frigidaire Refrigerator Screw
*19489WCI 318034403
*194935303323139 Frigidaire Oven Screw
*1949708002868 Frigidaire 0 Screw Assembly
*19487WCI 318120702
*19496WCI 5303311528
*19491WASHER-OVEN VENT
*19495WCI 318086200
1WCI 5303310527
2WCI 318071704
6318025314 Frigidaire Oven Rack
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-BODYSIDE, BLACK, (4)
56WCI 318083503
58WCI 5303316994
58WCI 318106002
58INSULATION WRAPPER
58WCI 5303310538
59WCI 5303320844
59WCI 318072504
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071211
76WCI 318056202
80WCI 5303301261
81WCI 5303320846
82SHIELD-INSULATION
83WCI 318089607
86WCI 5303310524
88WCI 5303311222
89WCI 5304409801
96WCI 5303317197
96Duct,oven vent ,center
98WCI 318029213
98WCI 318029211
99WCI 318055410
103WCI 318028500
107WCI 318119600
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070800
150BWCI 318072204
150AWCI 318072205
156WCI 5303317198
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
270WCI 318132500
