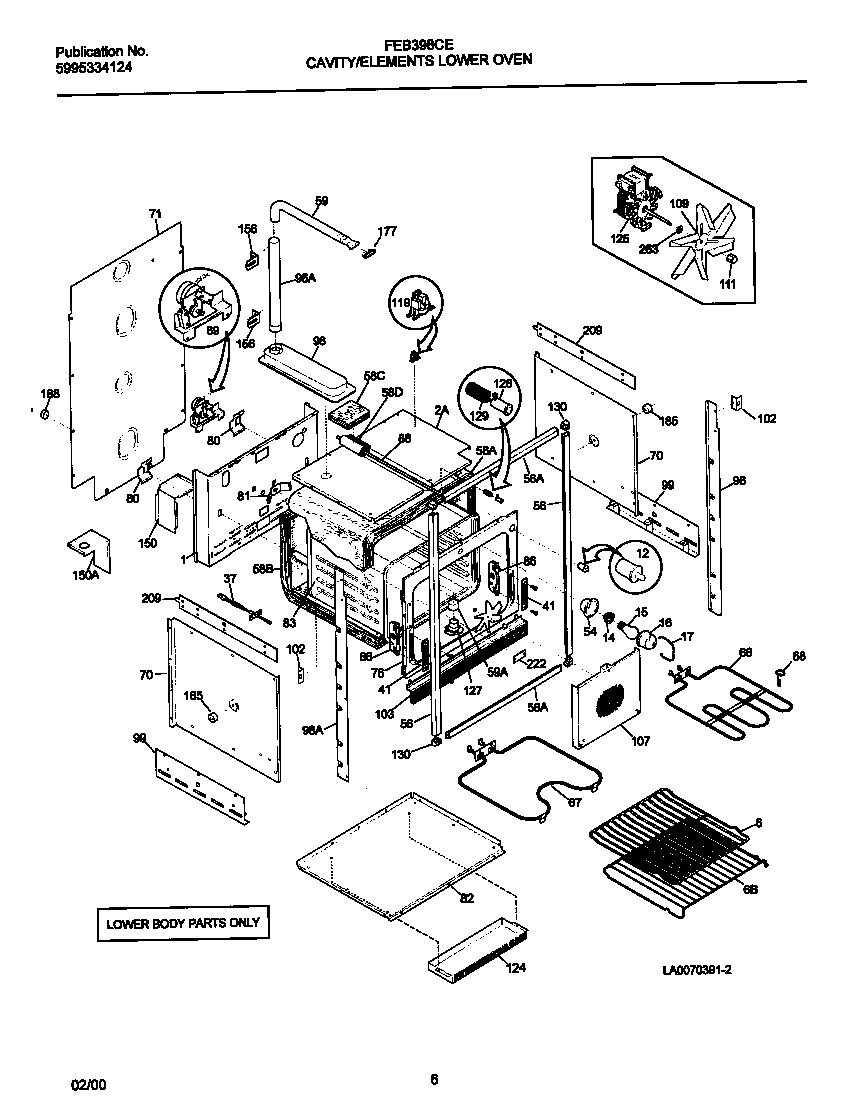

FEB398CEBD 04 – LOWER CAVITY/ELEMENTS

FEB398CEBD 04 – LOWER CAVITY/ELEMENTS

Written by

in

FEB398CEBD 04 – LOWER CAVITY/ELEMENTS

Products

PositionProduct
*764665303300265 Frigidaire Oven Screw
*76465TAPE-INNER DOOR 45“
*764685303304015 Frigidaire Oven Washer
*76462WCI 318034403
*76477WCI 318096002
*764745303324184 Frigidaire Wall Oven Range Screw
*764725304480396 Frigidaire Screw
*7646108002868 Frigidaire 0 Screw Assembly
*76467WCI 5303302745
*76470WCI 5303311528
*76475WCI 5304407813
*764735303323277 Frigidaire Oven Screw
*76476WCI 318078507
*764695304464772 Frigidaire Refrigerator Wire Tie
*764645303211311 Frigidaire Refrigerator Screw
*76471WASHER-OVEN VENT
*764603201861 Frigidaire Screw
1WCI 318066402
2WCI 318071704
6318025314 Frigidaire Oven Rack
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-BODYSIDE, BLACK, (4)
58WCI 318132500
58WCI 318106002
58INSULATION WRAPPER
58WCI 5303310538
59WCI 5303320844
59WCI 318072504
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071211
76WCI 318056202
80WCI 5303301261
81WCI 5303320846
82SHIELD-INSULATION
83WCI 318089607
86WCI 5303310524
88WCI 5303311222
89BWCI 318120710
89A318095956 Frigidaire Oven Motor
96Duct,oven vent ,center
96WCI 5303317197
98WCI 318029213
98WCI 318029211
99WCI 318055410
102WCI 318090900
103WCI 318028500
107WCI 318119600
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
130WCI 318070800
150BWCI 318072204
150AWCI 318072205
156WCI 5303317198
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
209WCI 318086200
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
