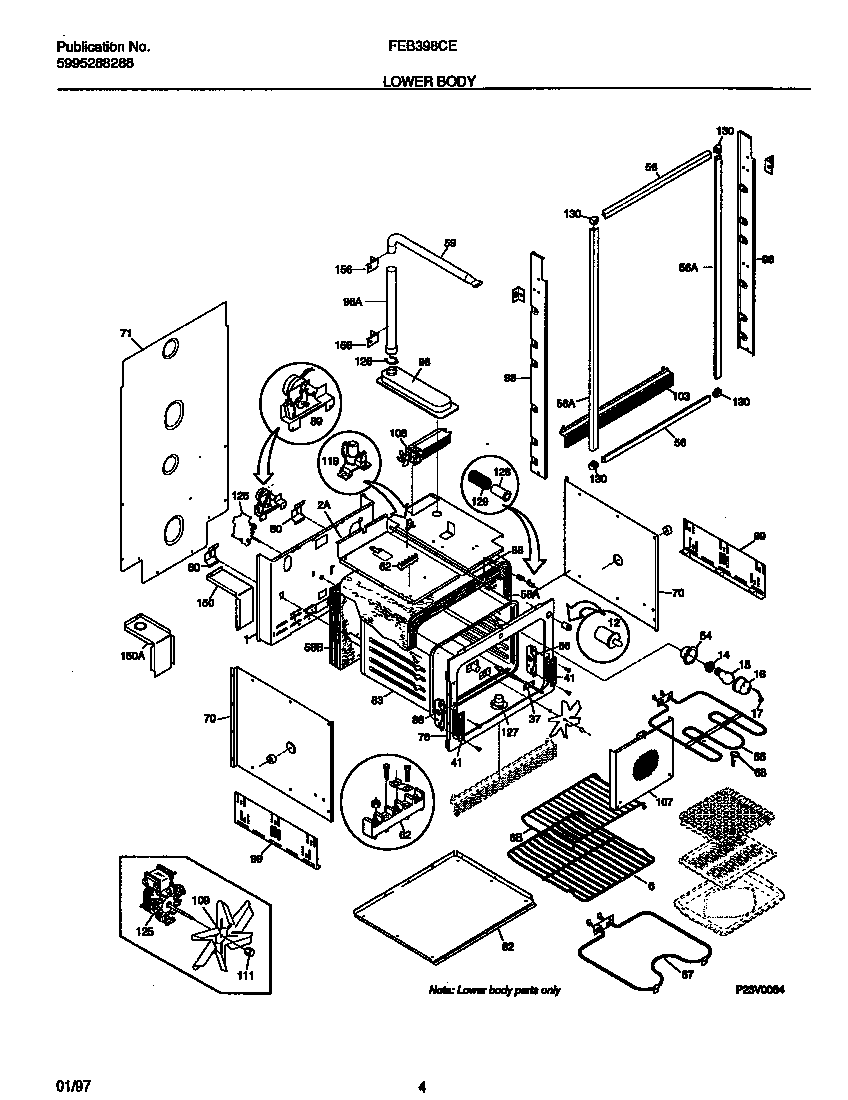

FEB398CESA 03 – LOWER BODY

Products

Position	Product
*85491	CLIP-WIRE
*85484	5303304015 Frigidaire Oven Washer
*85485	WCI 318086200
*85487	5303211311 Frigidaire Refrigerator Screw
*85483	WCI 318090900
*85486	5303013272 Frigidaire Oven Nut
*85489	WCI 5303320846
*85488	WCI 5303311528
*85490	WCI 318078507
1	WCI 318066400
2	WCI 318071702
6	318025314 Frigidaire Oven Rack
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
37B	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56	TOP TRIM,WHITE ,(4)
56	WCI 318083504
58	INSULATION WRAPPER
58	WCI 5303310538
59A	WCI 318072506
59B	WASHER-OVEN VENT
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	WCI 5303307563
70B	318531800 Frigidaire Oven Spacer
70A	WCI 5303300142
71	WCI 318071210
76	WCI 318056202
80	WCI 5303301261
82	WCI 318072300
83	WCI 5303320847
86	WCI 5303310524
88	WCI 5303311222
89B	3201861 Frigidaire Screw
89A	WCI 5303317196
96	Duct,oven vent ,center
96	WCI 5303317197
98B	WCI 318029213
98A	WCI 318029211
99	WCI 318055410
103	WCI 318028501
107	WCI 318119600
108	WCI 318073001
109	WCI 318137400
111B	WCI 318137600
111A	WCI 318137700
119	318004900 Frigidaire Thermal Switch
125B	WCI 5303320346
125A	WCI 318137100
126	Clip,insulator
127A	318317100 Frigidaire Adapter Assembly
127B	WCI 5303311195
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
130	WCI 318070801
150	WCI 318072205
150	WCI 318072204
156	WCI 5303317198
