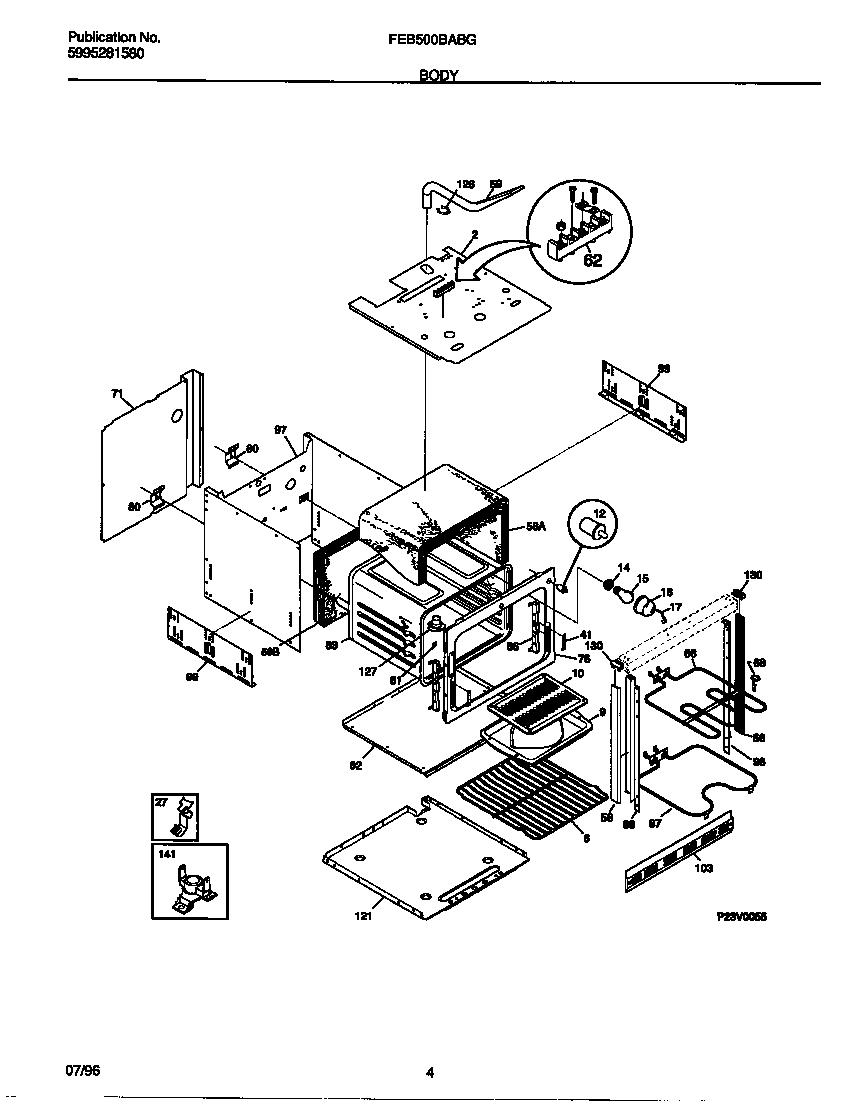

FEB500BABG 03 – BODY

FEB500BABG 03 – BODY

Written by

in

FEB500BABG 03 – BODY

Products

PositionProduct
*10805WCI 5303269859
*10806COVER-CAPILLARY
*108025304500008 Frigidaire Oven Screw
*1080308002868 Frigidaire 0 Screw Assembly
*10807WCI 5303316981
*108045303211311 Frigidaire Refrigerator Screw
2SHIELD-OVEN TOP
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12SWITCH-DOOR
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
56WCI 5303298951
58INSULATION, OVEN BACK
58INSULATION, OVEN WRAPPER
59WCI 5303300422
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 318056120
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 318089504
86WCI 3201631
97WCI 318066603
98WCI 5303298952
98WCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028710
121WCI 5303305036
126Clip,insulator
127TUBE-OVEN VENT
141WCI 5303304704
