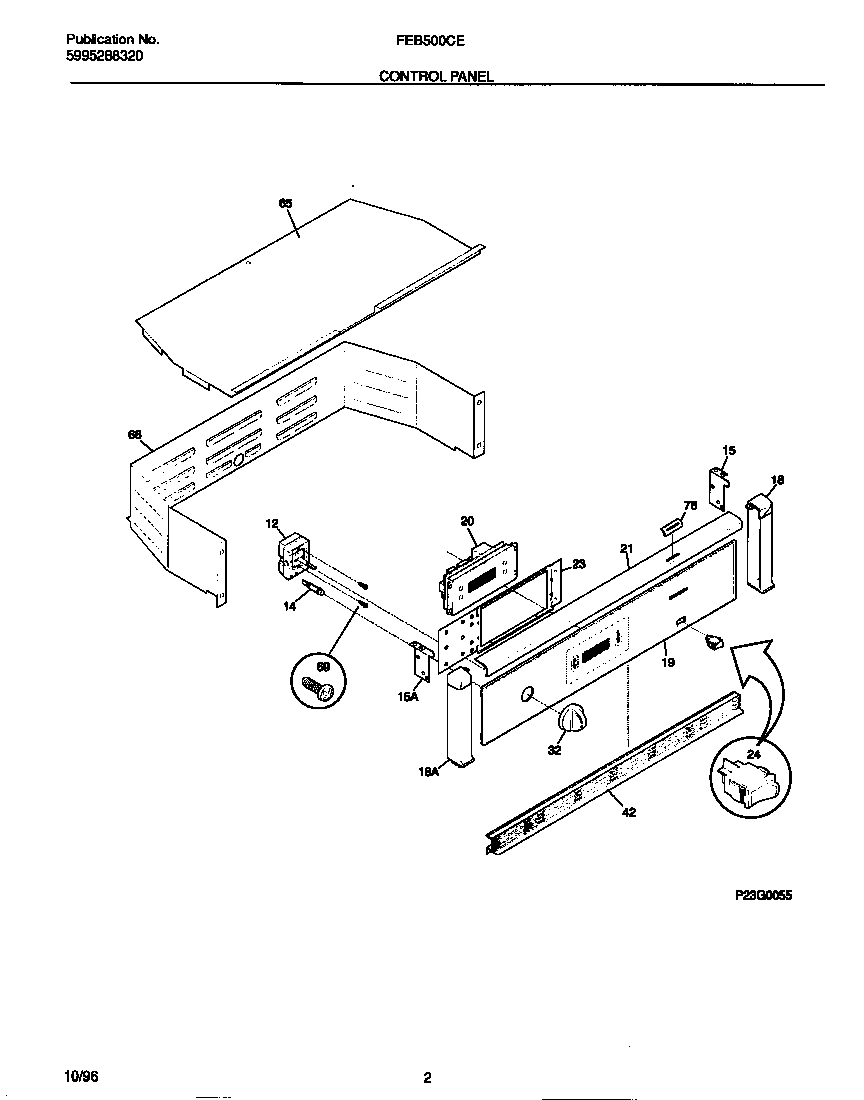

FEB500CESB 02 – CONTROL PANEL

FEB500CESB 02 – CONTROL PANEL

Written by

in

FEB500CESB 02 – CONTROL PANEL

Products

PositionProduct
*74881WCI 5303300414
*74884WCI 5303320423
*74882PLATE, BACKUP, LIGHT SWITCH
*748805303211311 Frigidaire Refrigerator Screw
*748835304414648 Frigidaire Oven Screw
12WCI 318058300
14WCI 5303320424
15WCI 5303302286
15WCI 5303302287
18WCI 5303311208
18WCI 5303311209
19WCI 318129702
20WCI 316066801
21TRIM-CANOPY,WHITE
21WCI 5303316956
21SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
23WCI 318015700
245304527842 Frigidaire Rocker Switch
32WCI 318017206
42WCI 5303316649
65WCI 5303302390
68WCI 5303302397
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
78WCI 5303302394
