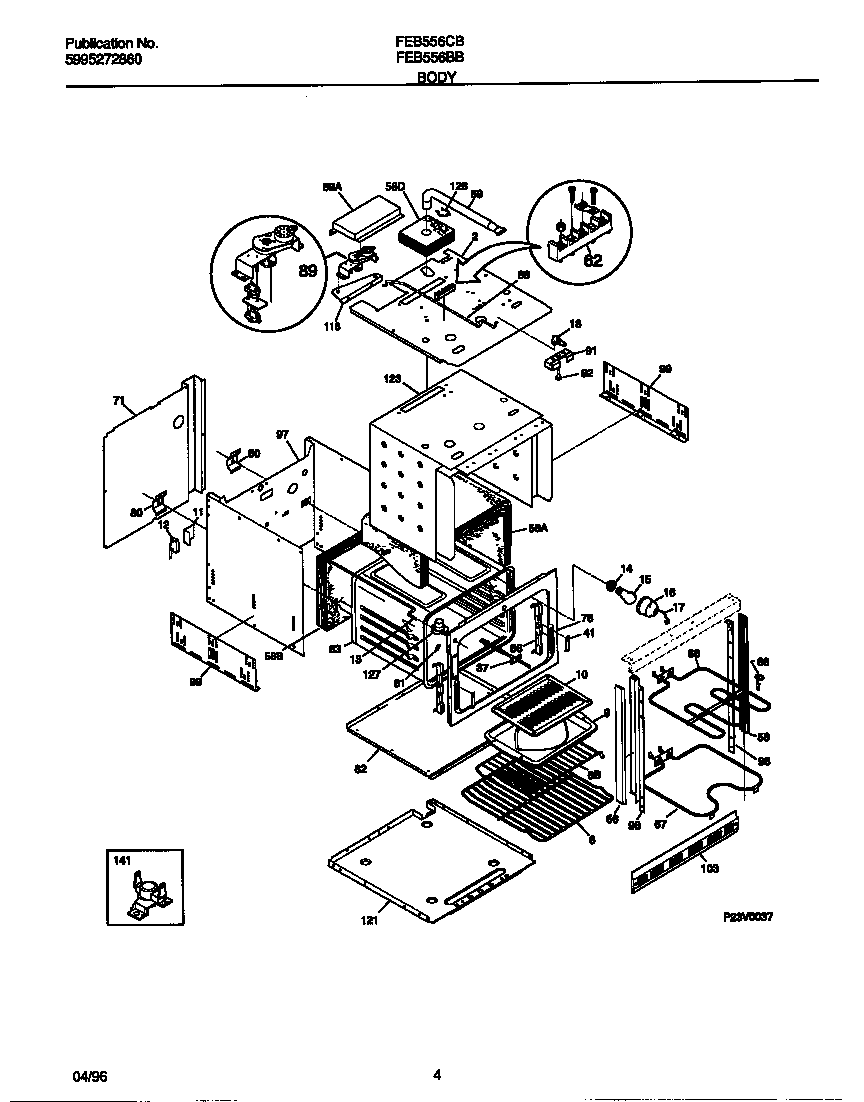

FEB556BBB2 03 – BODY

FEB556BBB2 03 – BODY

Written by

in

FEB556BBB2 03 – BODY

Products

PositionProduct
*001265304500008 Frigidaire Oven Screw
*00124COVER-CAPILLARY
*001255303304015 Frigidaire Oven Washer
*00121WCI 3018802
*00123WCI 3201881
*00122FASTENER, SWITCH
*0012708002868 Frigidaire 0 Screw Assembly
2WCI 5303301263
6WCI 5303305676
6WCI 5303299366
9WCI 5303310521
10WCI 5303310520
11WCI 5303308448
12BWCI 5303308447
12ASWITCH – OVEN LIGHT
13BWCI 3204114
13AWCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303298951
56WCI 5303318690
58WCI 5303271040
58WCI 5303311220
58INSULATION-WRAP
59WCI 5303300422
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 5303296326
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83LINER-OVEN
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WCI 5303300423
98AWCI 5303298952
98BWCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028710
118BRACKET-MOTOR MTG
121WCI 5303305036
123WCI 3202445
126Clip,insulator
127TUBE-OVEN VENT
1415303302280 Frigidaire Safety Thermostat
