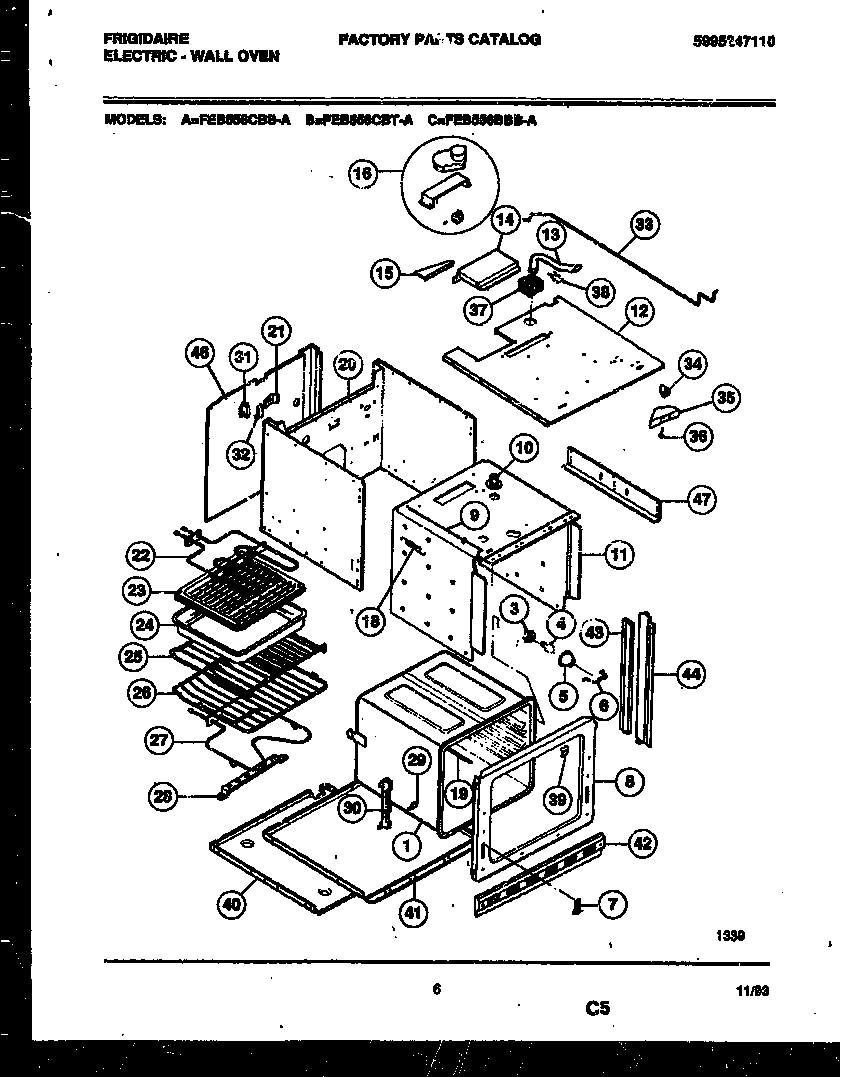

FEB556BBBA 04 – BODY PARTS

Products

Position	Product
1	LINER-OVEN
3	SOCKET-LIGHT/LAMP, OVEN
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 5303296326
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3202445
12	WCI 5303301263
13	WCI 5303300422
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303269766
18	WCI 3204114
19	316217002 Frigidaire Oven Temperature Probe
20	WCI 5303300423
21	WCI 5303301261
22	5303016247 Frigidaire Broil Element
23	WCI 3201920
24	WCI 3201919
25	318345216 Frigidaire Oven Rack
26	WCI 5303299266
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3201632
30	WCI 3201631
31	SWITCH – OVEN LIGHT
32	WCI 3202384
33	WCI 3016241
34	LATCH-DOOR
35	WCI 3019069
36	AXLE – HINGE (2)
37	WCI 3016302
38	Clip,insulator
39	PLUG BUTTON (NON-ILLUSTRATED)
40	WCI 3202447
41	WCI 5303299483
42	WCI 5303298954
43A	WCI 5303298953
43	WCI 5303298952
44A	5303302280 Frigidaire Safety Thermostat
44	WCI 5303298951
44B	WCI 5303271040
44C	INSULATION – BACK (NON-ILLUSTRATED)
46	WCI 5303284951
47	318284201 Frigidaire PANEL
