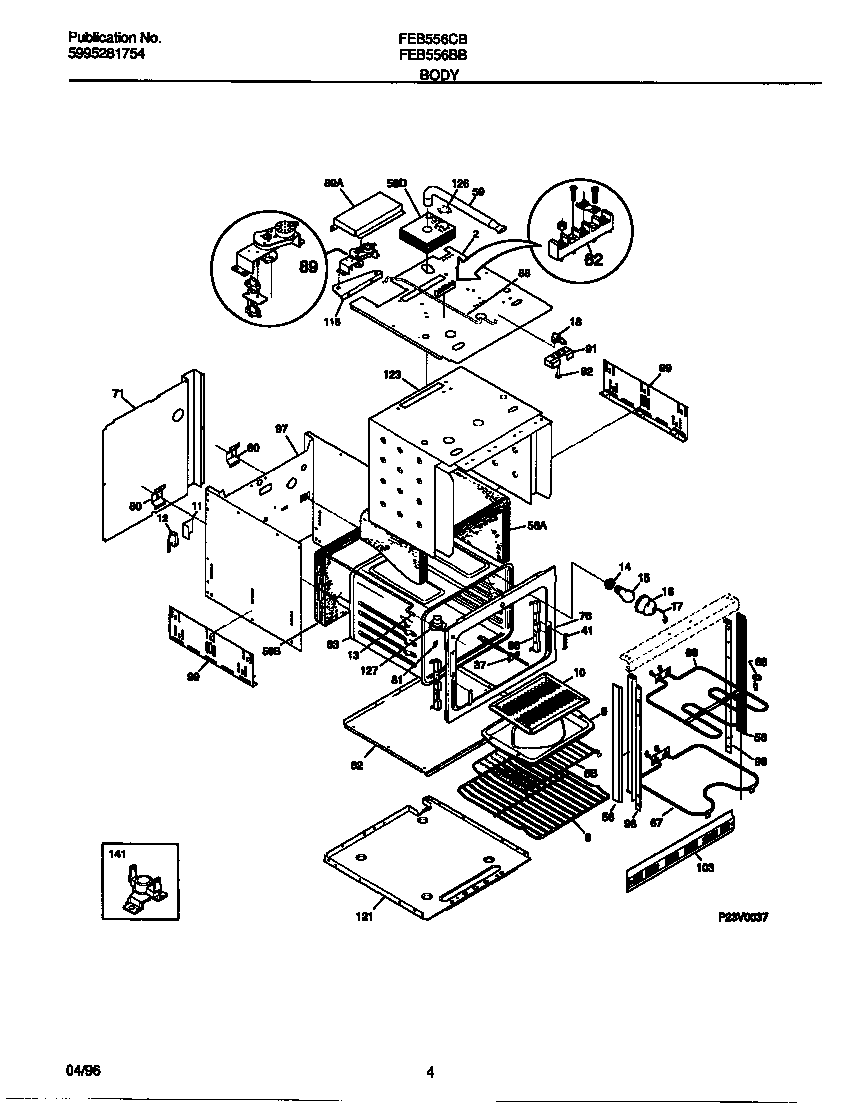

FEB556CBTD 03 – BODY

Products

Position	Product
*81566	5304500008 Frigidaire Oven Screw
*81564	COVER-CAPILLARY
*81565	5303304015 Frigidaire Oven Washer
*81567	08002868 Frigidaire 0 Screw Assembly
*81562	FASTENER, SWITCH
*81561	WCI 3018802
*81563	WCI 3201881
2	WCI 5303301263
6	WCI 5303305676
6	WCI 5303299366
9	WCI 5303317977
10	WCI 5303317976
11	WCI 5303308448
12A	SWITCH – OVEN LIGHT
12B	WCI 5303308447
13A	WCI 3202077
13B	WCI 3204114
14	SOCKET-LIGHT/LAMP, OVEN
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
18	LATCH-DOOR
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 3019063
56	WCI 5303318690
56	WCI 5303302712
58	INSULATION-WRAP
58	WCI 5303311220
58	WCI 5303271040
59	WCI 5303300422
62B	SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255101 Frigidaire Oven Bake Element
68	WCI 5303307563
71	SHIELD-WIRE
76	WCI 318056130
80	WCI 5303301261
81	WCI 3201632
82	SHIELD, OVEN BOTTOM
83	WCI 318089501
86	WCI 3201631
88	WCI 3016241
89	WCI 5303269766
89	WCI 3016296
91	WCI 3019069
92	AXLE – HINGE (2)
97	WCI 318066603
98A	WCI 5303298952
98B	WCI 5303298953
99	318284201 Frigidaire PANEL
103	WCI 318028712
118	BRACKET-MOTOR MTG
121	WCI 5303305036
123	WCI 3202445
126	Clip,insulator
127	TUBE-OVEN VENT
141	5303302280 Frigidaire Safety Thermostat
