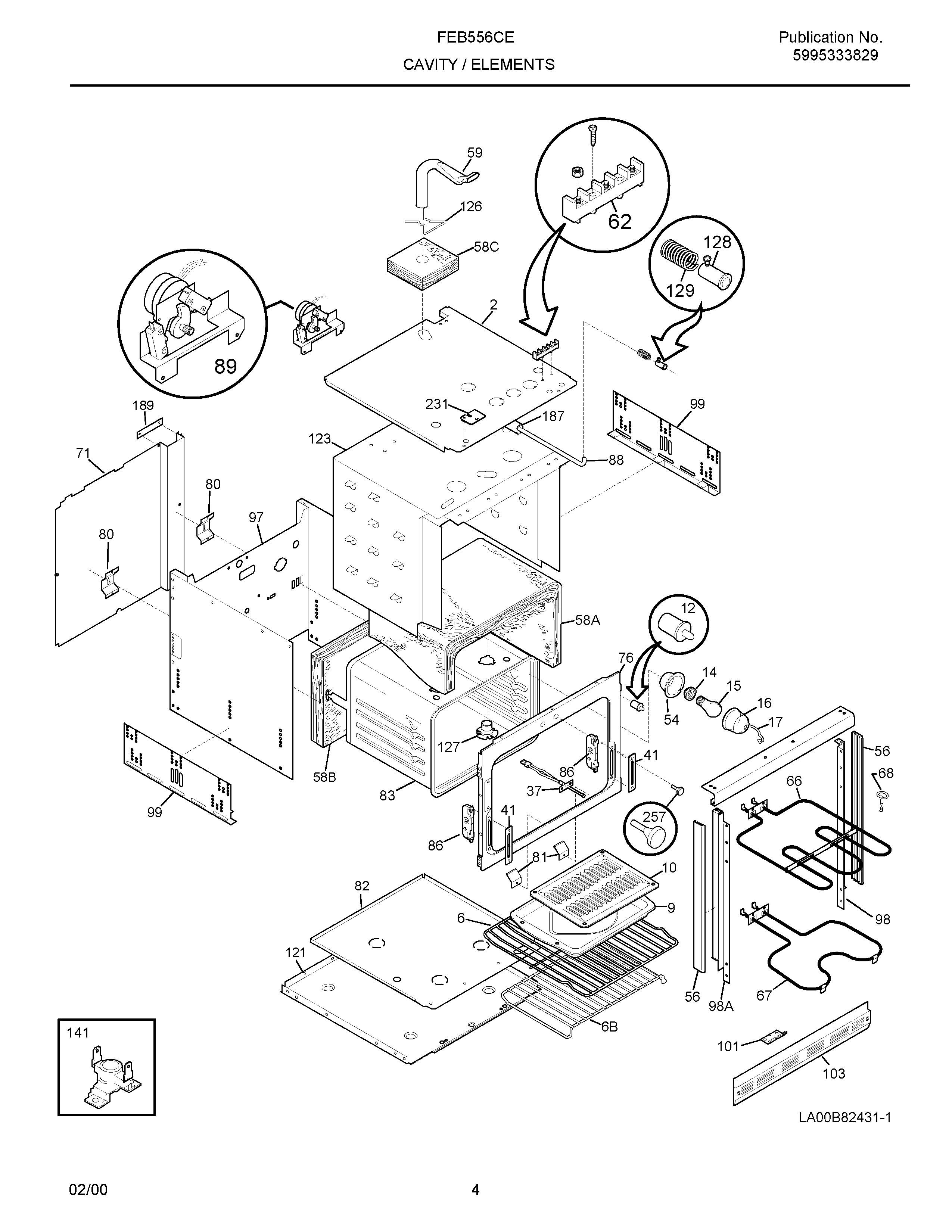

FEB556CEBH 03 – CAVITY/ELEMENTS

Products

Position	Product
NI	5304500008 Frigidaire Oven Screw
NI	5303304015 Frigidaire Oven Washer
NI	BX & WIRES AY
NIA	WCI 318120710
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 3018802
NI	WCI 3201881
NI	5303323137 Frigidaire Oven Screw
NI	WCI 5303302745
2	SHIELD-OVEN TOP
6	WCI 5303299366
6B	WCI 5303305676
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56	WCI 5303298951
58C	WCI 5303311220
58B	INSULATION-WRAP
58A	INSULATION WRAPPER
59	WCI 318072507
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255101 Frigidaire Oven Bake Element
68	5304403015 Frigidaire Oven Support
71	SHIELD-WIRE
76	WCI 318056139
80	WCI 5303301261
81	WCI 5303323710
82	SHIELD, OVEN BOTTOM
83	WCI 318089508
86	WCI 5303310524
88	WCI 318118903
89	WCI 318095903
97	WRAPPER-BACK SIDE
98A	WCI 318029323
98	WCI 318029322
99	318284201 Frigidaire PANEL
101	BRACKET-TRIM (NOT ILLUSTRATED)
103	WCI 318028710
121	WCI 318145001
123	WCI 318071433
126	Clip,insulator
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
187	WCI 318013501
189	RETAINER PLATE
231	COVER-CAPILLARY
257	3131903 Frigidaire Door/Drawer Bumper
