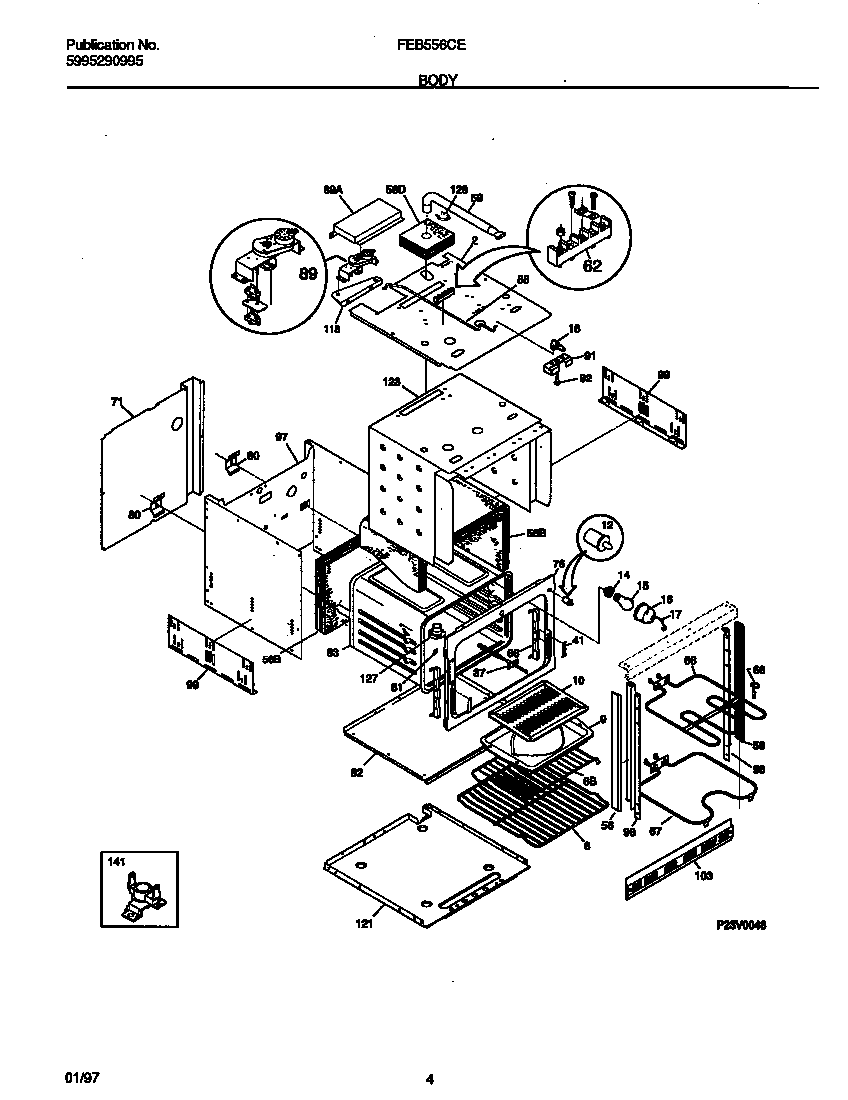

FEB556CESC 03 – BODY

FEB556CESC 03 – BODY

Written by

in

FEB556CESC 03 – BODY

Products

PositionProduct
*013625304500008 Frigidaire Oven Screw
*01364WCI 3018802
*01368WCI 5303319468
*013675303304015 Frigidaire Oven Washer
*0136308002868 Frigidaire 0 Screw Assembly
*01365WCI 3201881
*01366COVER-CAPILLARY
2WCI 5303301263
6WCI 5303299366
6WCI 5303305676
7WCI 316009400
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
235300809968 Frigidaire Dishwasher P-1 Washer
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303320422
56WCI 5303302711
58WCI 5303311220
58INSULATION-WRAP
59WCI 318072507
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A5304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 318056133
80WCI 5303301261
81WCI 3201632
82SHIELD, OVEN BOTTOM
83WCI 318089508
86WCI 3201631
88WCI 3016241
89WCI 3016296
89AWCI 5303269766
89B3201861 Frigidaire Screw
91WCI 3019069
92AXLE – HINGE (2)
97WCI 318066603
98BWCI 5303298953
98AWCI 5303298952
99318284201 Frigidaire PANEL
103WCI 318028711
118BRACKET-MOTOR MTG
121WCI 5303305036
123WCI 3202445
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
1415303302280 Frigidaire Safety Thermostat
