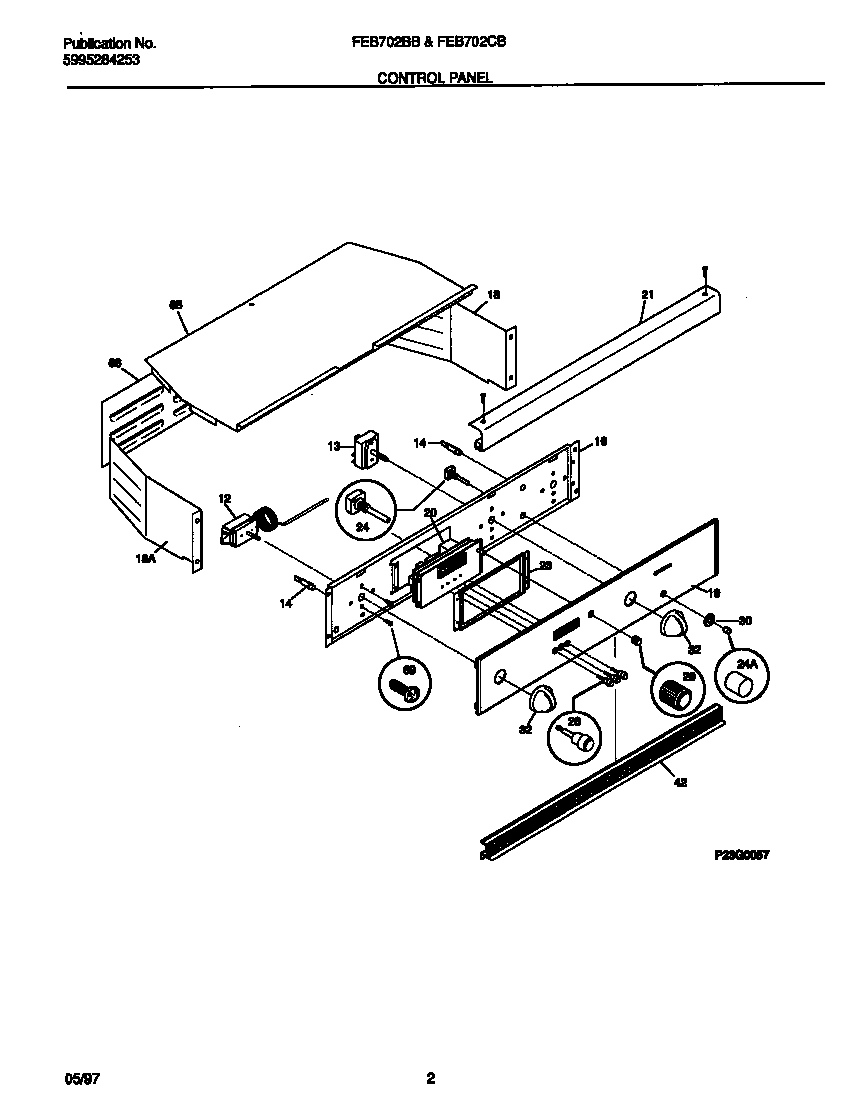

FEB702CBSC 02 – CONTROL PANEL

FEB702CBSC 02 – CONTROL PANEL

Written by

in

FEB702CBSC 02 – CONTROL PANEL

Products

PositionProduct
*545215303300265 Frigidaire Oven Screw
*54522WCI 5303311318
*545205303211311 Frigidaire Refrigerator Screw
12WCI 5303299472
13SWITCH-SELECTOR
14LIGHT-INDICATOR
16WCI 318023303
18WCI 5303302377
18WCI 5303302378
19WCI 5303302384
20AWCI 5303302289
20B216858001 Frigidaire Refrigerator Screw
21WCI 5303299529
21WCI 5303316956
23WCI 3202088
24AWCI 318090000
24WCI 5303299547
24BWCI 5303302303
28TIMER KNOB
29KNOB TIMER
30WCI 5303316744
32WCI 318017206
42WCI 318026907
65COVER – CONT HOUSING
68WCI 5303302376
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
