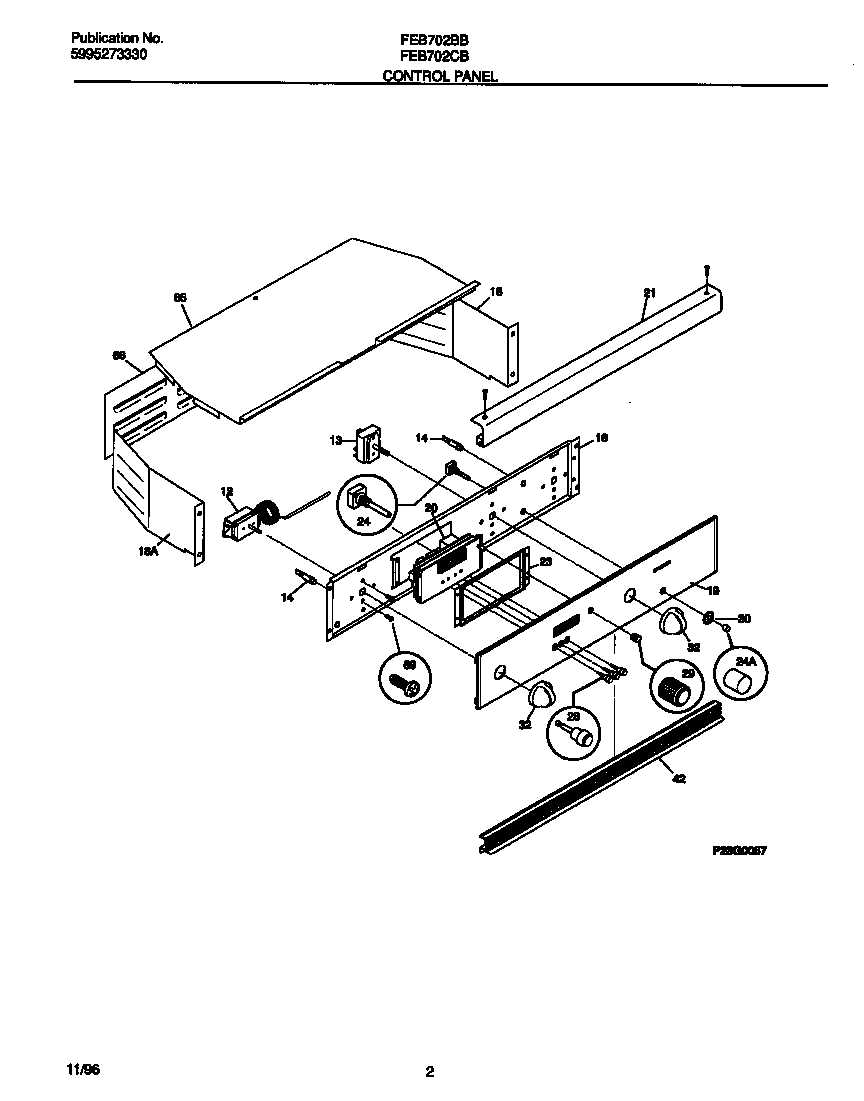

FEB702CBSF 02 – CONTROL PANEL

FEB702CBSF 02 – CONTROL PANEL

Written by

in

FEB702CBSF 02 – CONTROL PANEL

Products

PositionProduct
*289215303211311 Frigidaire Refrigerator Screw
*28920WCI 5303311318
12WCI 5303299472
13SWITCH-SELECTOR
14LIGHT-INDICATOR
16WCI 318023303
18WCI 5303302377
18WCI 5303302378
19WCI 5303302384
20B216858001 Frigidaire Refrigerator Screw
20AWCI 5303302289
21WCI 5303299529
21WCI 5303316956
23WCI 3202088
24WCI 5303299547
24BWCI 5303302303
24AWCI 318090000
28TIMER KNOB
29KNOB TIMER
30WCI 5303316744
32WCI 5303305025
42WCI 5303299544
65COVER – CONT HOUSING
68WCI 5303302376
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
