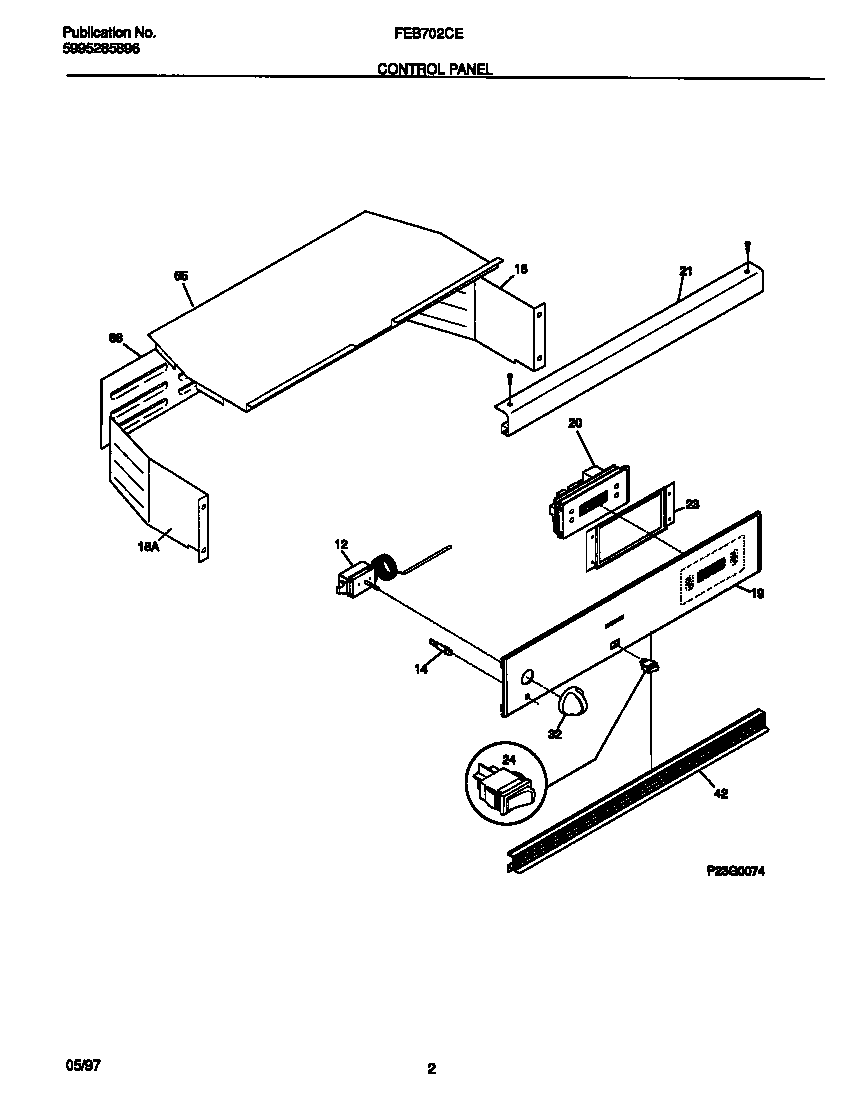

FEB702CESA 02 – CONTROL PANEL

FEB702CESA 02 – CONTROL PANEL

Written by

in

FEB702CESA 02 – CONTROL PANEL

Products

PositionProduct
*004025303300265 Frigidaire Oven Screw
*00400WCI 5303300414
*004045304414648 Frigidaire Oven Screw
*004035303211311 Frigidaire Refrigerator Screw
*00401PLATE, BACKUP, LIGHT SWITCH
12WCI 318058300
14WCI 5303320424
18WCI 5303302377
18WCI 5303302378
19WCI 318129602
19SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
20WCI 316066801
21WCI 5303299529
21WCI 5303320683
23WCI 318015720
245304527842 Frigidaire Rocker Switch
32WCI 318017206
42WCI 318026907
65COVER – CONT HOUSING
68WCI 5303302376
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
