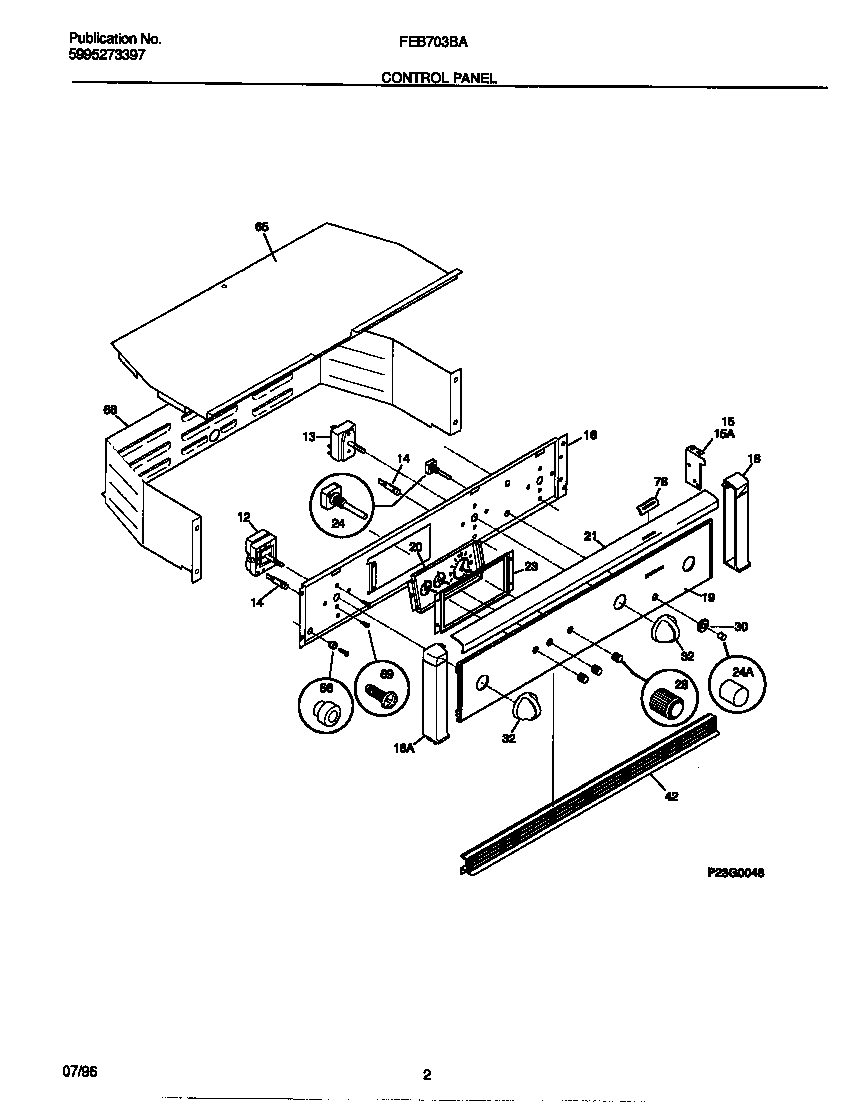

FEB703BABF 02 – CONTROL PANEL

FEB703BABF 02 – CONTROL PANEL

Written by

in

FEB703BABF 02 – CONTROL PANEL

Products

PositionProduct
*31361WCI 5303300414
*31360WCI 5303311318
12THERMOSTAT-OVEN
13SWITCH-SELECTOR
14LIGHT-INDICATOR
15WCI 5303302287
15WCI 5303302286
16WCI 5303300100
18WCI 5303311231
18WCI 5303311232
19PANEL-CONTROL, GLASS, BLACK
20CLOCK/TIMER
21TRIM-CANOPY/SHIELD, BLACK
21SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
23WCI 3202088
24WCI 5303302303
24WCI 318090000
24WCI 5303299474
29WCI 316029000
30WCI 5303316767
32KNOB
42WCI 5303316983
65WCI 5303302386
66WCI 5303304698
68WCI 5303302285
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
78WCI 5303302396
